Dust filter bags

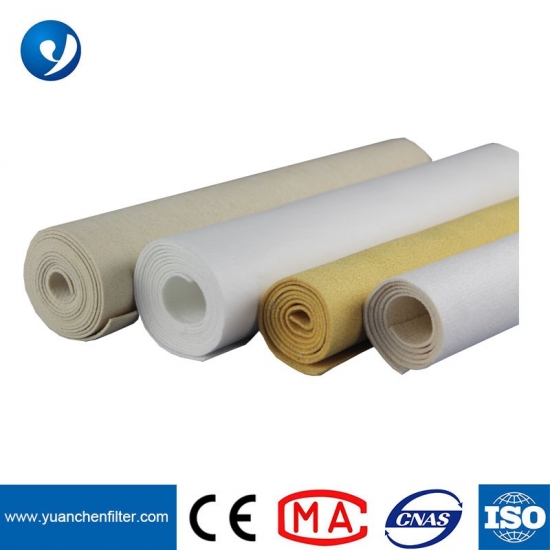

Nonwoven Acrylic Needle Felt for Baghouse

We offer non woven needle felt filter cloth. Anhui Yuanchen are engaged in non woven needle felt filter cloth that is manufactured of polyester, aramid(nomex), acrylic, p84(ryton), fiberglass, pps , ptfe etc.
  • Item NO.:

    Acrylic-02
  • Payment:

    T/T,L/C,PAYPAL,WESTERN UNION
  • Product Origin:

    China
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    7
  • Scrim Material:

    100% acrylic or polyester
  • Weight:

    500gsm 550gsm
  • Thickness:

    2.0±0.2mm
  • Temp. Range:

    Continue 120 ℃ Peak 140℃
  • Application:

    Cement,Steel,Construction,Metallurgy
  • Product Detail

1.Brief Introduction Of Acrylic Filter Fabrics

Our non woven needle felt filter cloth is available in standard sizes and can be customized as per clients’ specifications. Our non woven needle felt filter fabric provides excellent quality performance.

When the temperature is lower than 125°C, acrylic has good resistance to organic solvents, oxidants, inorganic and organic acids, and is not easy to be hydrolyzed.


2.Technical Data

Technical Specification

Name/Quality

100% acrylic w/ PTFE membrane

Component

Shell Fiber

100% Acrylic (DT)



Scrim

100% Acrylic (DT)

Weight

550±5% gsm

Thickness

2.0mm

Air Permeability/127Pa       cm3/cm2.s

4

Tensile Strength   N/5*20CM

Length

≥800



Cross

≥1000

Elongation at break %

Length

≤25



Cross

≤35

Temperature                                        ( Celsius Degree)

Continue

125



Peaks

140

Finish

Heat Stabilization,Glaze, Singe,  PTFE macerate,PTFE Membrane

Use Scope

Cenment,  Steel,   Construction,Metallurgy;


3.Remarks

1) The length of dust filter bags:  can be customized

Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.

2) Process Method: automatic sewing or welded

3)Prodction details:Double bottoms and reinforcement to make abrasion resistance.

Sewing thread: PTFE thread, polyester thread.

4)Inspection:  Filter bags will be according to the national standards, industry

standards and enterprise standards.

5) If your required filter bag is different from our usual one, then please send us your drawing picture and  choose material you need since we also produce the nonstandard filter bag.


4.Advantages of the product:

1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.

2.Strong intensity

3.Excellent anti-abrasion,good finishing treatment

4.Good raw material, competitive price

5.High filtration efficiency

6.Fast delivery

7.Size can be customized

8.Factory manufacturer could contal quality and price

9.Strict quality inspection and contol

10.Professional designer teams to match with your operating condition


Application field:

In industry dust collection

  • Power Plant Or Stations

Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dus

  • Building and Construction

Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,

Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminu

  • Chemical Industry

Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate

Soap powder


Package

Each roll packed into a waterproof nylon bag,also can be with shipping mark as client's requirement.




FRQ:

Q1. What is your terms of payment?

A: T/T will usually be accepted,details could be negotiated.


Q2. What is your terms of delivery?

A: FOB, CFR, CIF, DDU,EXW


Q3. How about your delivery time?

A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.


Q5. What is your sample policy?

A: we could offer the sample for free charge but do not pay the cost of freight.


Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery


Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

   2. We respect every customer as our friend and we sincerely do business and make  friends with them.
