Dust filter bags

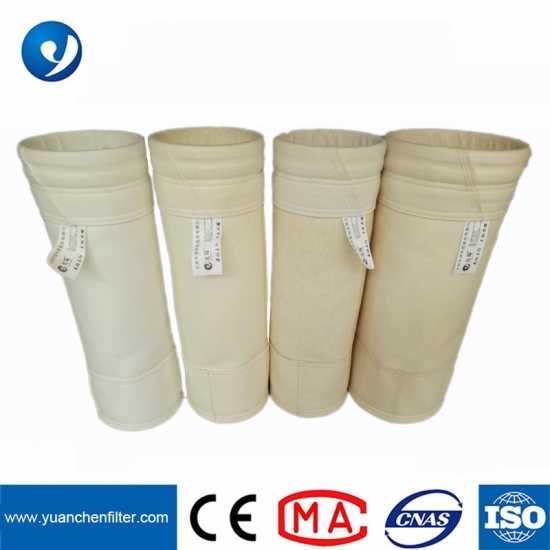

Aramid / nomex material bag filter for fly ash dust collector

Nomex filter bag for higher temperature dust filtration ,widely applied in Asphalt mixing plant ,Kiln smoke in cement plant ,steelmelting furnace smoke and so on .
NOMEX filters offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long wear life.


  • Item NO.:

    Nomex-01
  • Payment:

    L/C, T/T, D/P, Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    7
  • Scrim Material:

    100%Nomex
  • Weight:

    500 550 600 gsm
  • Thickness:

    2±0.2mm
  • Temp. Range:

    Continue 204℃ Peak 240℃
  • Application:

    Cement,Steel,Construction,Metallurgy
  • Product Detail

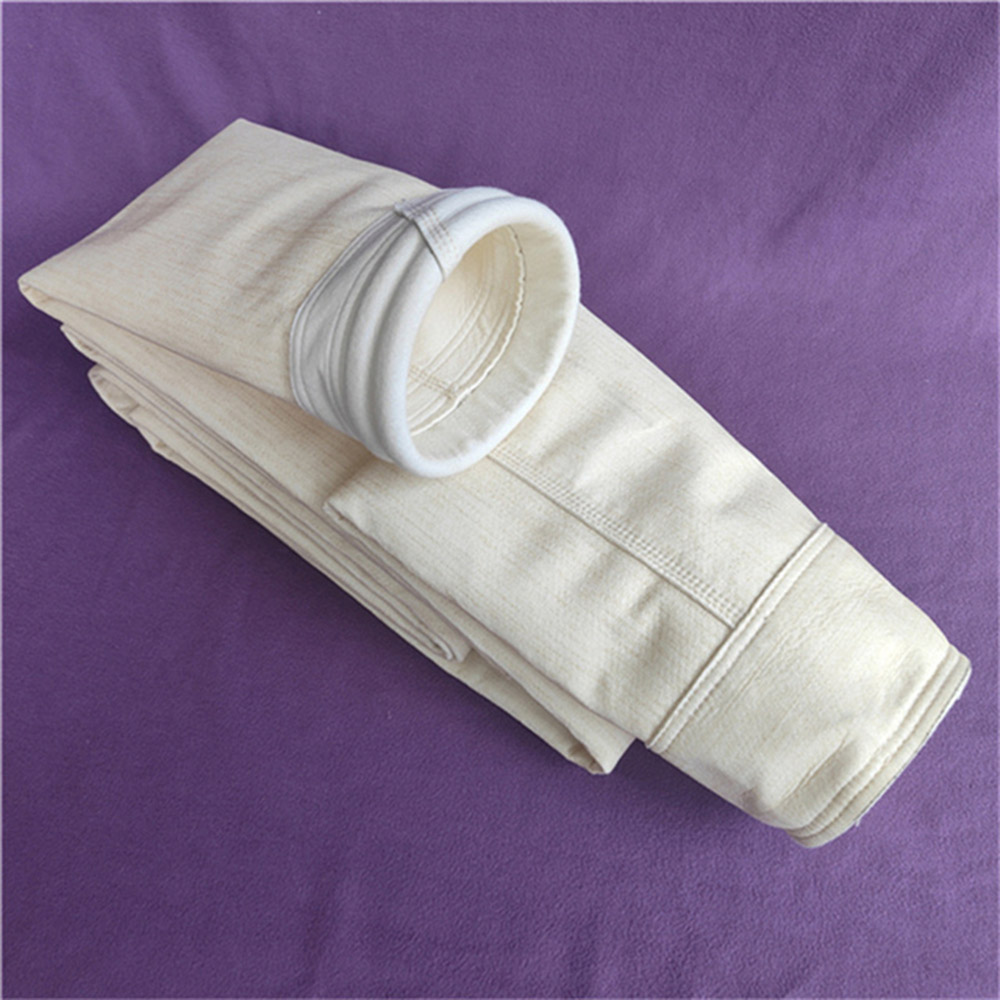

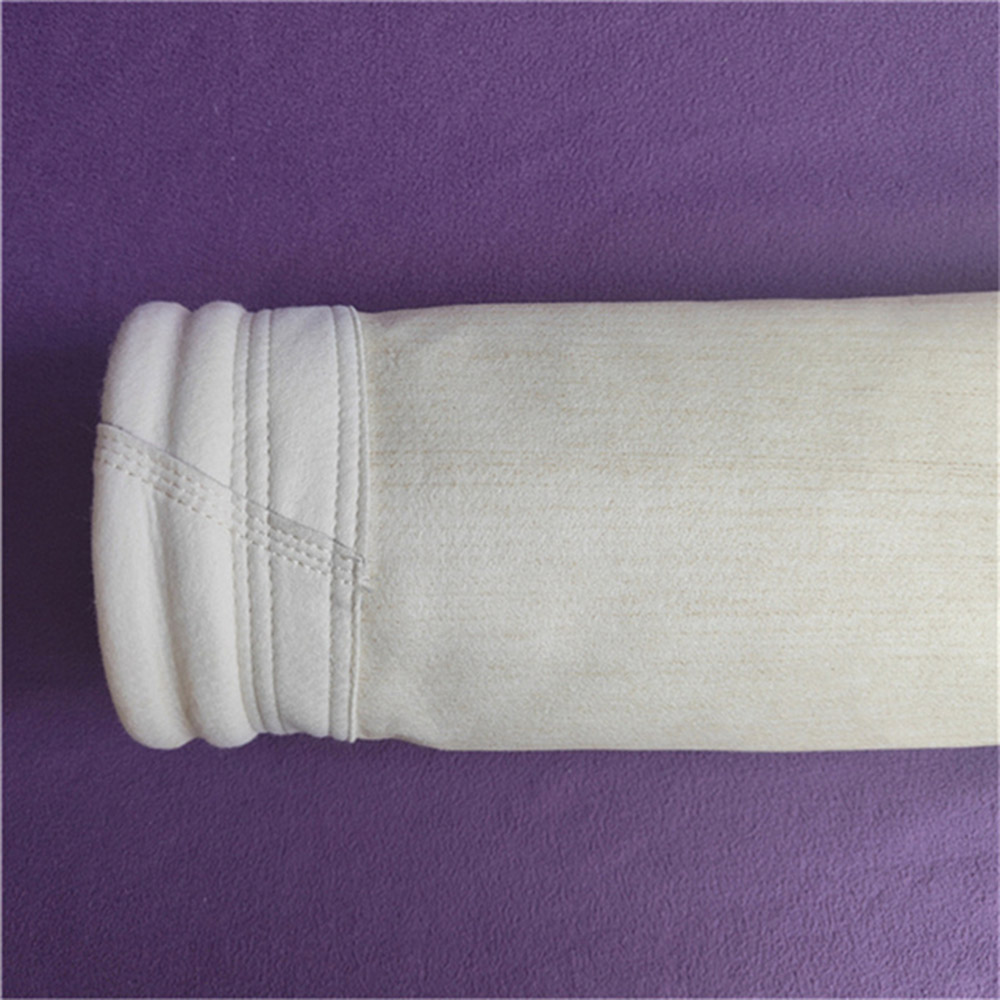

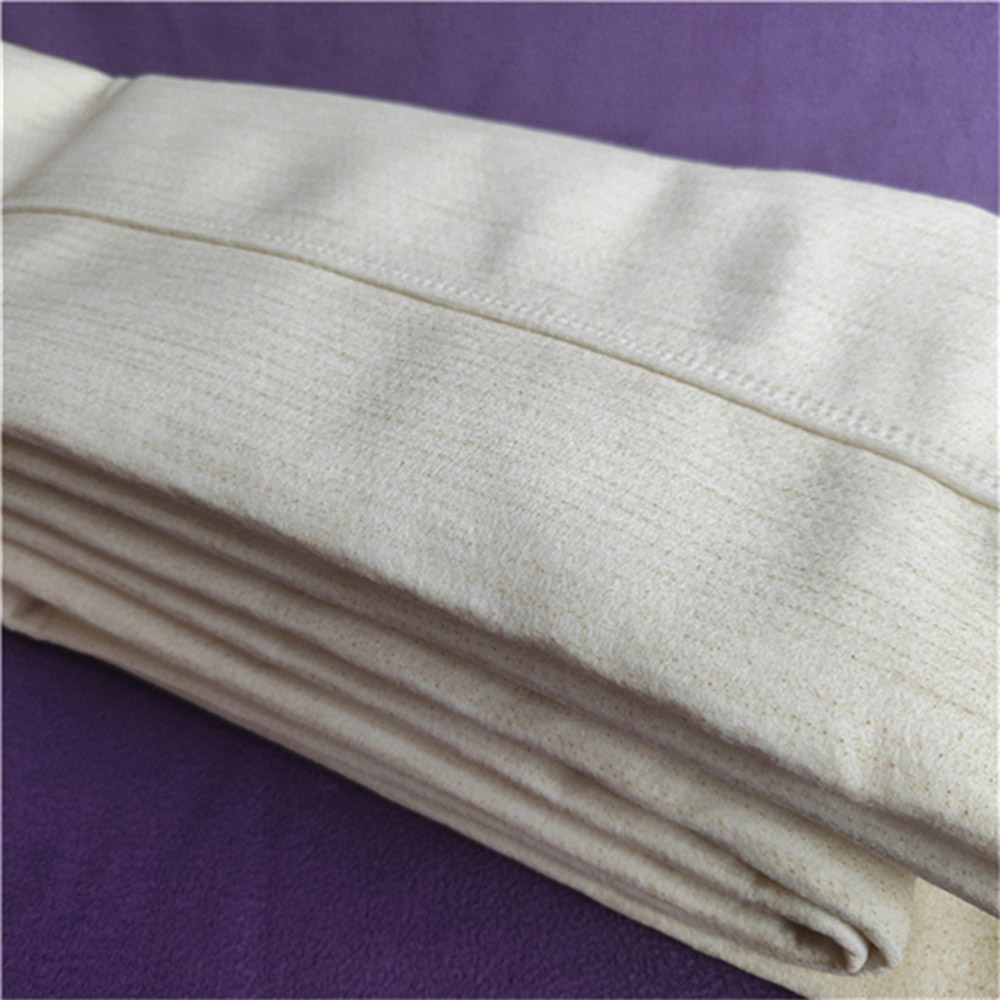

Aramid / nomex material bag filter for fly ash dust collector


Technical Data for Imported Nomex fiber needle punched felt Aramid dust collector filter bag for filtration

Technical Specification

Name/Quality

100% Nomex

Component

Shell Fiber

100% Nomex



Scrim

PTFE

Weight

500±5%gsm

Thickness

2.0±0.2mm

Air Permeability /200Pa      L/dm2.min

130-180

Tensile Strength       N/5*20CM

Length

≥800



Cross

≥1200

Elongation at break%

Length

≤30



Cross

≤50

Temperature  ℃

Continue

200



Peaks

220

Finish

Singeing,Calendering,Heat-set

Use Scope

Cement, Steel,  Construction,Metallurgy, etc


Features

1.high-efficient filtering
2.easy dust cut off
3.durable and reliable
4.long lifetime
5.polyester material, other material is also available
6.shape: round, flat and envelope
7.type: impulse filter bag, vibrating filter bag and counter blowing filter bag.


 Application field:

In industry dust collection

  • Power Plant Or Stations

Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dus

  • Building and Construction

Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,

Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminum

  • Chemical Industry

Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate Soap powder

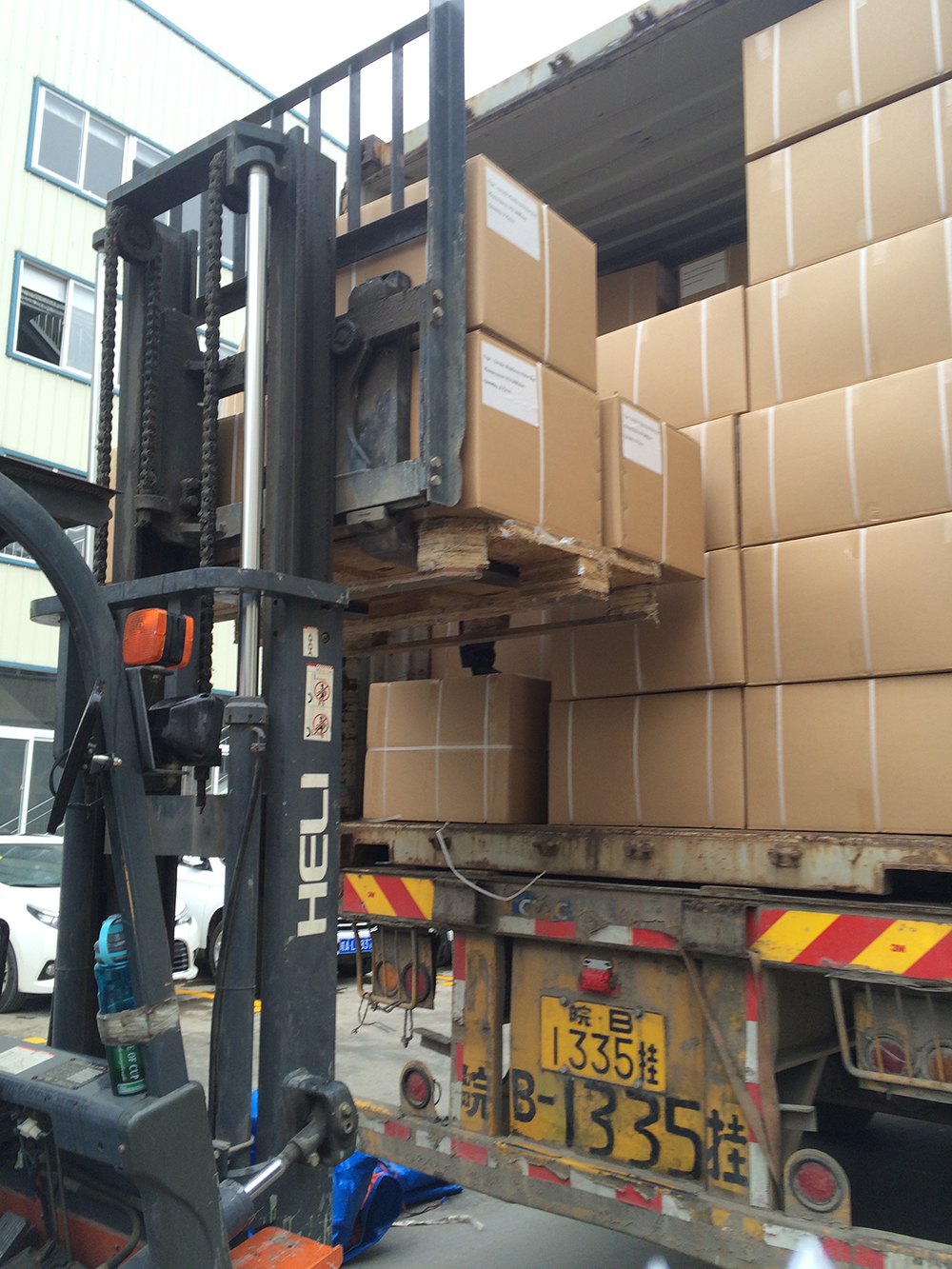

The nomex filter sleeves packaging:

Different types of filter bag must be individually packaged. In general, it is wrapped in plastic bags for water proof, then put in a carton. Filter bag must be neat and regular packing, with the ring of the filter bag to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.



7. FRQ:

Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU,EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
Generally, It will take 10 to 20 days after receiving your advanced payment. The specific delivery time depends on your items and quantity of your order.
