Bag Filter Anti Static Polyester Filter Bag In Dust Collector For Cement Plant
1. Brief Introduction Of Polyester Anti-Static Filter Bag
Bag filters are in general frequently used for dust removal in industrial applications. We make filter bags to fit most styles and types of bag houses and other dust collection systems. Filter bags come in a wide range of fabrics, coatings, finishes, sizes and configurations.Medias are available in various fabric weights and treatments such as singed, glazed, PTFEmembrane, anti-static, acid resistant and more.
2. We pay attention to following processing matters:
(1) Precise design required size of the filter cloth for filter bag parts, the filter cloth will larger than the actual amount design size, to leave a spare for weaving.
(2) To choose the right filter bag accessories, specifications and check its quality. The filter bag accessories should match the filter bag quality requirements.
(3) We make the filter bag line drawing, cutting, sewing on automatic production line. When the filter bag need manual processing, we will open it on the operation platform, and with certain pulling force to keep it is flat.
(4) We keep the strict processing quality standards, according to design drawings and operation process. Our worker meet the requirements of tooling and clothing , no smoking.
(5) We have the responsible for the processing of products, and examines, waste, residue, defective goods in the beginning.

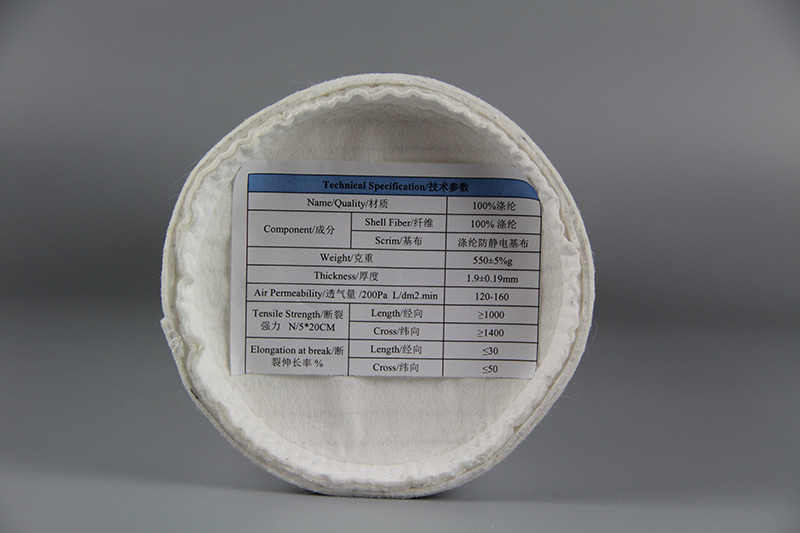

Technical Specification
Name/Quality
100% PE
Component
Shell Fiber
100% PE
Scrim
100% PE filament fiber
Weight
550gsm±5%
Thickness
1.9mm ± 0.2
Air Permeability/200 Pa L/dm2.min
20-50
Tensile Strength N/5*20CM
Length
≥1000
Cross
≥1500
Elongation at break %
Length
≤30
Cross
≤50
Temperature ( Celsius Degree)
Continue
130
Peaks
150
Finish
Singeing, Calendering, Heat-set, PTFE Membrane
Use Scope
Cement, Steel, Construction, Metallurgy
3. Remarks
1) The length of dust filter bags: can be customized
Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
2) Process Method: automatic sewing or welded
3) Prodction details:Double bottoms and reinforcement to make abrasion resistance.
Sewing thread: PTFE thread, polyester thread.
4) Inspection: Filter bags will be according to the national standards, industry standards and enterprise standards.
5) If your required filter bag is different from our usual one, then please send us your drawing picture and choose material you need since we also produce the nonstandard filter bag.
4. Advantages of Us:
1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE, Nomex, FMS etc
2.Strong intensity
3.Excellent anti-abrasion,good finishing treatment
4.Good raw material, competitive price
5.High filtration efficiency
6.Fast delivery
7.Size can be customized
8.Factory manufacturer could control quality and price
9.Strict quality inspection and contol
10.Professional designer teams to match with your operating condition
5. Application field:
In industry dust collection
- Power Plant Or Stations
Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dus
-
Building and Construction
Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,
Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminum
- Chemical Industry
Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate Soap powder
6. The filter bag packaging:
Different types of filter bag must be individually packaged. In general, it is wrapped in plastic bags for water proof, then put in a carton. Filter bag must be neat and regular packing, with the ring of the filter bag to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.
7. FRQ:
Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU,EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
8. Company Introduction
Anhui Yuanchen Environmental Protection Science and Technology Co,Ltd,which was established in 2005 ,is a national high-tech enterprise with ISO 9001:2008 specializing in dust filter bag,filter fabric,filter cage,honeycomb catalyst and other spare parts used on the dust collectors.
More than 400 skillful workers, German production technology,strict material selection,imported production equipments and managements enable us the ability to produce 10000 square meters filter cloth,3000 filter bags and 1000 filter cages per day.We get great reputation from our clients due to good quality ,reasonable price,professional consult serviice and huge market etc.
We are not only the supplier for filter bags,we are also the solution supplier for your removal projects,besause we have professional Senior Engineers designing to meet the requirements of your industry environment.
With more than 17 years experience and specialized in filter fabrics and filter bags ,Anhui Yuanchen filter is developing air filtration with professional teams.Our filter fabric can guarantee the ultra clean emission( under 5mg).
