Dust filter bags

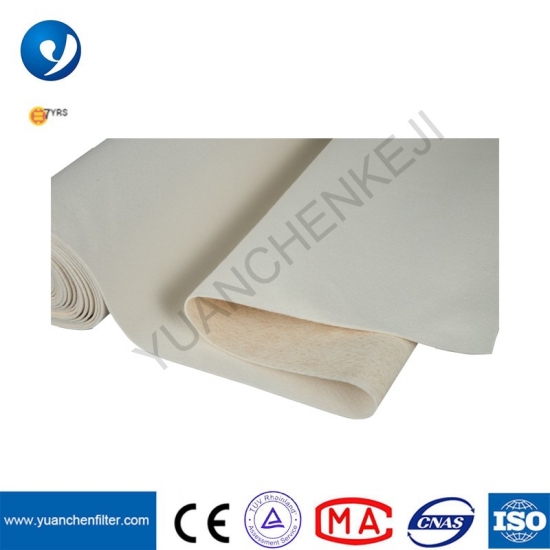

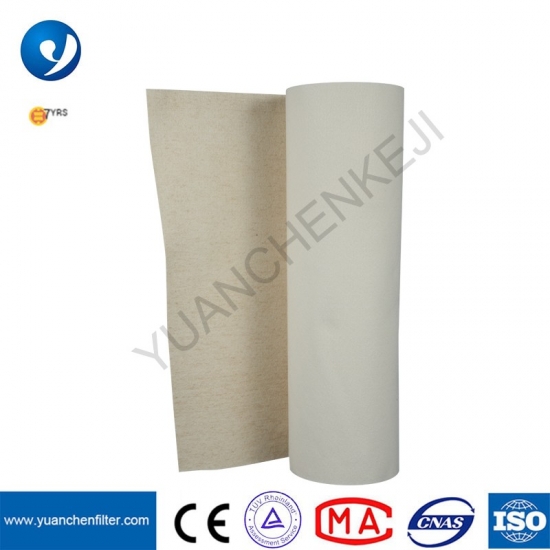

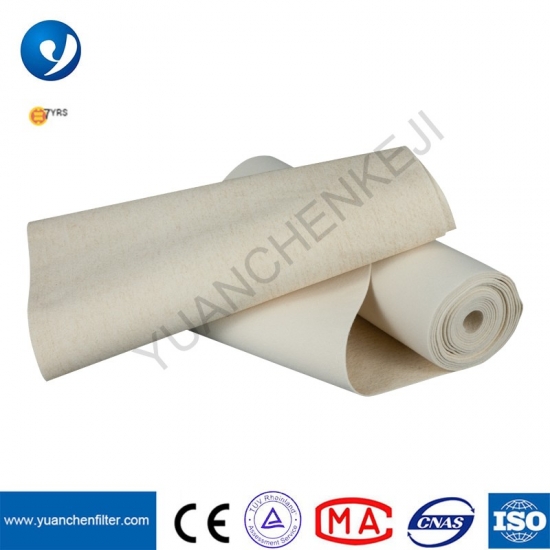

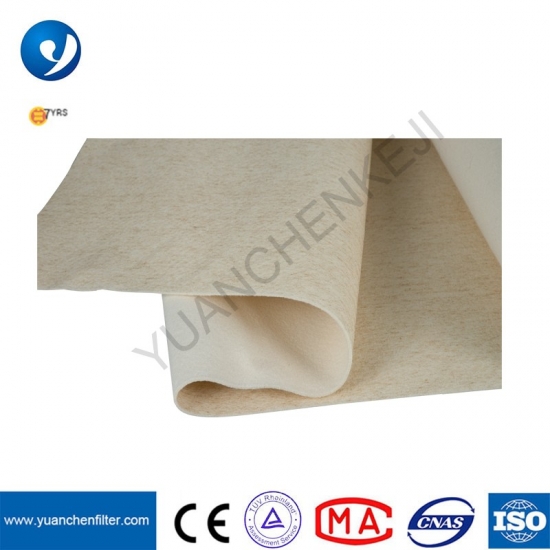

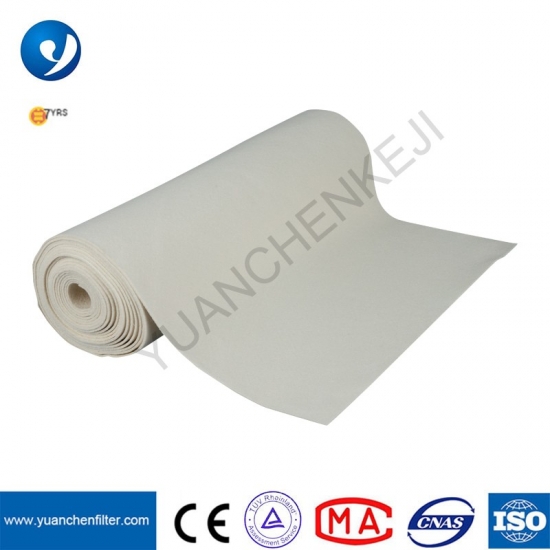

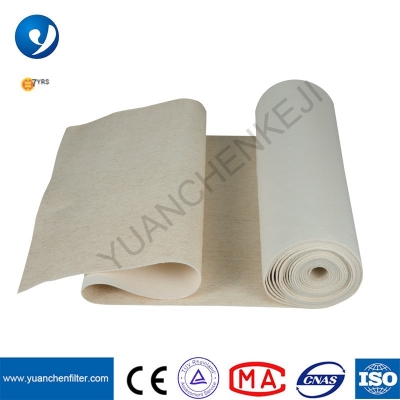

Filter Fabric Reinforced Needle Nomex Felt for Non Woven Fabric

Aramid Fiber Material


1.High Strength

2.Wear-resistant

3.Compact and not easy to shed


  • Item NO.:

    Nomex-02
  • Payment:

    T/T,L/C,PAYPAL,WESTERN UNION,negotiable
  • Product Origin:

    China
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    7
  • Scrim Material:

    100%Nomex
  • Weight:

    500 550 600 gsm
  • Thickness:

    2±0.2mm
  • Temp. Range:

    Continue 204℃ Peak 240℃
  • Application:

    Cement,Steel,Construction,Metallurgy
  • Product Detail

Filter Fabric Reinforced Needle Nomex Felt for Non Woven Fabric



1.Features & Benefits of aramid needle punched felt filter cloth:

Non Voven Fabric for Filtration in Vietnam

Professional Manufature Aramid Filter Fabric
1.High temperature resistance
2.Corrosion resistance
3.Good anti-alkali
4.Abrasion resistance
5.High quality
6.Can be customized
7.It is widely used in asphlat plant


2.We pay attention to following processing matters:

(1) Precise design required size of the filter cloth for filter bag parts, the filter cloth will larger than the actual amount design size, to leave a spare for weaving.

(2) To choose the right filter bag accessories, specifications and check its quality. The filter bag accessories should match the filter bag quality requirements.

(3) We make the filter bag line drawing, cutting, sewing on automatic production line. When the filter bag need manual processing, we will open it on the operation platform, and with certain pulling force to keep it is flat.

(4) We keep the strict processing quality standards, according to design drawings and operation process. Our worker meet the requirements of tooling and clothing , no smoking.

(5) We have the responsible for the processing of products, and examines, waste, residue, defective goods in the beginning.


Technical Specification

Name/Quality

100% Nomex

Component

Shell Fiber

100% Nomex



Scrim

PTFE

Weight

500±5% gsm

Thickness

2.0±0.2mm

Air Permeability /200Pa  L/dm2.min

130-180

Tensile Strength   N/5*20CM

Length

≥800



Cross

≥1200

Elongation at break %

Length

≤30



Cross

≤50

Temperature                                          ( Celsius Degree)

Continue

200



Peaks

220

Finish

Singeing,Calendering,Heat-set

Use Scope

Cement, Steel,  Construction, Metallurgy

3.Remarks

1) The length of dust filter bags:  can be customized

Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.

2) Process Method: automatic sewing or welded

3)Prodction details:Double bottoms and reinforcement to make abrasion resistance.

Sewing thread: PTFE thread, polyester thread.

4)Inspection:  Filter bags will be according to the national standards, industry

standards and enterprise standards.

5) If your required filter bag is different from our usual one, then please send us your drawing picture and  choose material you need since we also produce the nonstandard filter bag.

6) The calculation formula for the price of dust bag:
6.1We will show you how to calculate the price of cloth bags with the most commonly used materials.
6.2The formula is: (caliber x3.14+0.03) x length x unit price. In this way, the price of a cloth bag can be calculated.
6.3The caliber here refers to the opening of the flower plate you installed, and the unit price refers to the price per square meter (the price is different for different manufacturers according to different materials)

4.Advantages of the product:

1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.

2.Strong intensity

3.Excellent anti-abrasion,good finishing treatment

4.Good raw material, competitive price

5.High filtration efficiency

6.Fast delivery

7.Size can be customized

8.Factory manufacturer could contal quality and price

9.Strict quality inspection and contol

10.Professional designer teams to match with your operating condition


Application field:

In industry dust collection

  • Power Plant Or Stations

Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dus

  • Building and Construction

Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,

Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminu

  • Chemical Industry

Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate

Soap powder

The Nomex Dust Filter Bag With Stainless Steel Frame packaging:

usually use a PE bag to pack first,then packed into a nylon bag in the outer in case of water


FRQ:

Q: Are you trading company or manufacturer ?
A: We are factory since 2005.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If need others,it will be negotiable.
