Dust filter bags

FMS Filter Fabric Fms Pulse Jet Dust Filter Bag Needle Punched Felt Filter Bag for Cement Industry

FMS filter bag is a highly efficient high temperature resistant, corrosion resistant, acid and alkali resistant, wear resistant composite product. Flumes is a new high-temperature filter material developed for dry dust removal of blast furnace gas.
  • Item NO.:

    FMS-01
  • Payment:

    T/T,L/C,PAYPAL,WESTERN UNION,negotiable
  • Product Origin:

    China
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    7
  • Scrim Material:

    100% Fiberglass
  • Weight:

    760-840 gsm
  • Thickness:

    2.4±0.2mm
  • Temp. Range:

    Continue 260℃ Peak 300℃
  • Application:

    Cement,Waste Incineration
  • Product Detail

FMS Flumes Industrial Dust Filtration Fms Pulse Jet Dust Filter Bag Needle Punched Felt Filter Bag for Cement Industry


Brief Introduction

The Flumes filter bag adds P84 fiber to the fiberglass needle felt, which makes the felt layer tighter and the entanglement between the fibers is enhanced, which can cope with higher filtration wind speed. P84 fiber has a trilobal cross section, which forms a high surface area coefficient, which increases the dust collector rate. Moreover, the special cross-sectional shape of the fiber makes the dust mostly concentrated on the surface of the filter material, which is difficult to penetrate into the filter material. The gap reduces the running resistance and thus increases the filtering wind speed.


Technical Data

Technical Specification

Name/Quality

P84+Fiberglass

Component

Shell Fiber

P84+Fiberglass

Scrim

100%Fiberglass

Weight

800±5%gsm

Thickness

2.4±0.2mm

Air Permeability/200Pa  L/dm2.min

30-70

Tensile Strength/N/5*20CM

Length

≥1500

Cross

≥1500

Elongation at break%

Length

≤25

Cross

≤35

Temperature/( Celsius Degree)

Continue

260

Peaks

300

Finish

Singeing, Calendering, Heat-set,PTFE Membrance,Inpregnation

Use Scope

Cement,Waste Incineration


Remarks

1) The length of dust filter bags:  can be customized

Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.

2) Process Method: automatic sewing or welded

3)Production details: Double bottoms and reinforcement to make abrasion resistance.

Sewing thread: PTFE thread.

4)Inspection:  Filter bags will be according to the national standards, industry standards and enterprise standards.

5) If your required filter bag is different from our usual one, then please send us your drawing picture and  choose material you need since we also produce the nonstandard filter bag.


Advantages of us:

1. Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE, Nomex, FMS etc.

2. Strong intensity

3. Excellent anti-abrasion,good finishing treatment

4. Good raw material, competitive price

5. High filtration efficiency

6. Fast delivery

7. Size can be customized

8. Factory manufacturer could contal quality and price

9. Strict quality inspection and control

10. Professional designer teams to match with your operating condition

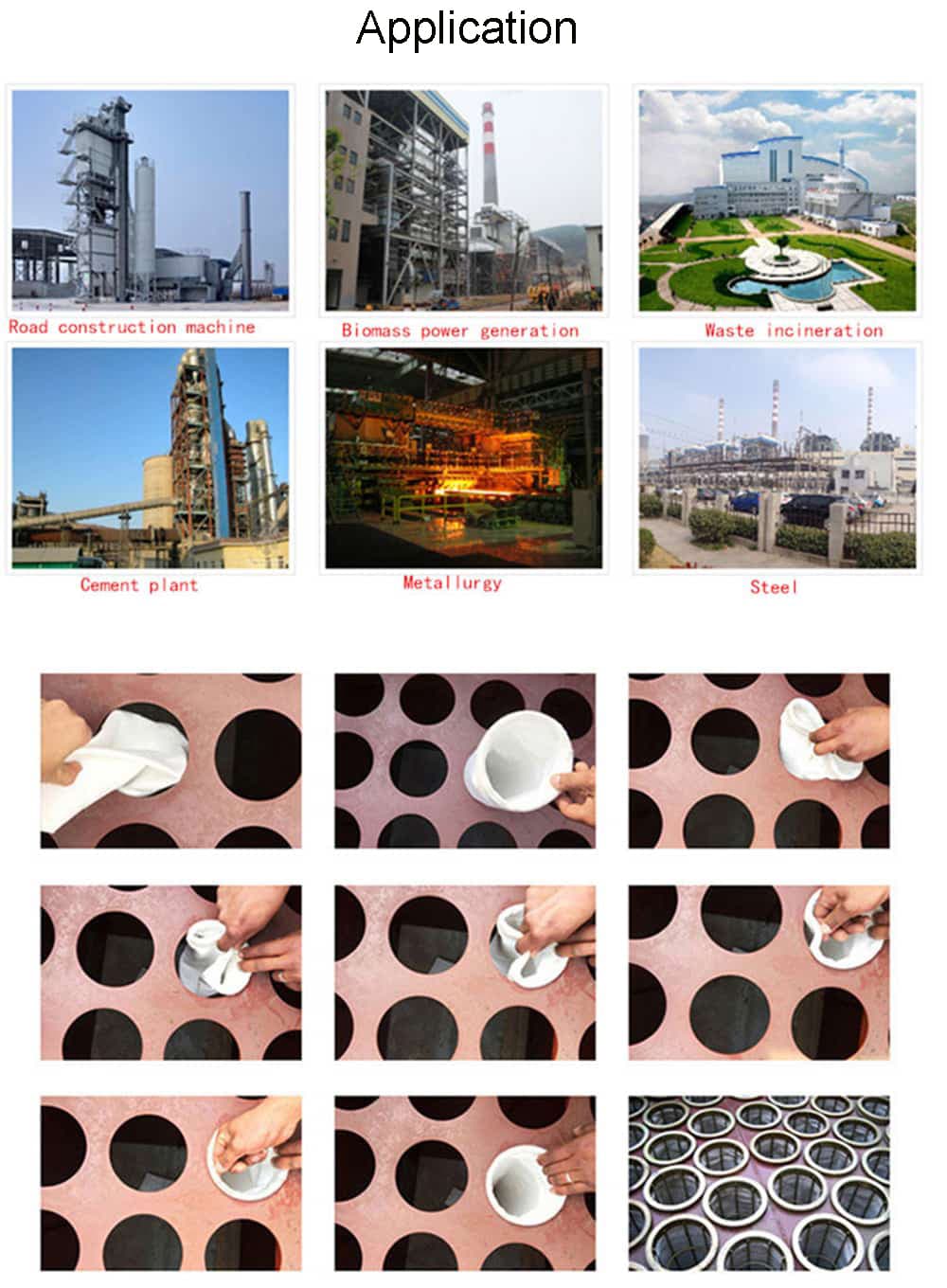

Application field:

In industry dust collection

.  Power Plant Or Stations

Filtered dust, waste incineration, Flue ash, discharging flue ash  ,Coal dust

.  Building and Construction

Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,

Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminum

.   Chemical Industry

Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate Soap powder

The filter bag packaging

Different types of filter bag must be individually packaged. In general, it is wrapped in plastic bags for water proof, then put in a carton. Filter bag must be neat and regular packing, with the ring of the filter bag to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.




FRQ

Q1. What is your terms of payment?

A: T/T will usually be accepted,details could be negotiated.

Q2. What is your terms of delivery?

A: FOB, CFR, CIF, DDU,EXW

Q3. How about your delivery time?

A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.

Q5. What is your sample policy?

A: we could offer the sample for free charge but do not pay the cost of freight.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

 2. We respect every customer as our friend and we sincerely do business and make  friends with them.
