Dust filter bags

FMS Needle Punched Felt Filter Cloth

FMS Needle Felt has functions of polishing, filtering, sealing, gasket, insulation, shockproof, damping, oil protection, heat insulation, etc.
FMS is a good high temperature resistance filter fabrics, this fabrics mainly made by 5.5 micron diameter glass fiber blend with P84 (polyimide), aramid(Nomex), PPS (ryton) fiber, with the three dimensional cellular structure, low air resistance, especial blend with P84 which with leaf style fiber, can increase the filter surface (80%).
Therefore, this FMS Needle Felt is easy to collect the dust, increase the fiber cohesion, can accept the high wind speed (50% higher about 1~1.4m/min), and it also has the properties of abrasion resistance.


  • Item NO.:

    FMS-02
  • Payment:

    T/T,L/C,PAYPAL,WESTERN UNION,negotiable
  • Product Origin:

    China
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    7
  • Scrim Material:

    100% Fiberglass
  • Weight:

    760-840 gsm
  • Thickness:

    2.4±0.2mm
  • Temp. Range:

    Continue 260℃ Peak 300℃
  • Application:

    Cement,Waste Incineration
  • Product Detail

FMS Needle Punched Felt Filter Cloth


What material is FMS needle felt?
FMS needle felt material is a physical composite filter material of glass fiber and PPS, P84, NOMEX, etc. The price of this material is relatively low, and the use temperature can reach 260 ℃, which is not affected by the temperature change of the boiler; After the fiber of the material is chemically treated, the exhaust gas of the boiler combustion can also be treated. However, because its main component is glass fiber, its anti-folding performance is poor, resulting in a short service life (generally less than 1 year) of the filter material and poor filtration accuracy (dust removal rate).




Technical data for filter cloth price philippines
Typical applications are Cement,Waste Incineration


Technical Specification

Name/Quality

P84+Fiberglass

Component

Shell Fiber

P84+Fiberglass

Scrim

100%Fiberglass

Weight

800±5%gsm

Thickness

2.4±0.2mm

Air Permeability/200Pa  L/dm2.min

30-70

Tensile Strength/N/5*20CM

Length

≥1500

Cross

≥1500

Elongation at break%

Length

≤25

Cross

≤35

Temperature/( Celsius Degree)

Continue

260

Peaks

300

Finish

Singeing, Calendering, Heat-set,PTFE Membrance,Inpregnation

Use Scope

Cement,Waste Incineration


Remarks

1) The length of dust filter bags:  can be customized

Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.

2) Process Method: automatic sewing or welded

3)Production details: Double bottoms and reinforcement to make abrasion resistance.

Sewing thread: PTFE thread.

4)Inspection:  Filter bags will be according to the national standards, industry standards and enterprise standards.

5) If your required filter bag is different from our usual one, then please send us your drawing picture and  choose material you need since we also produce the nonstandard filter bag.


Advantages of us:

1. Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE, Nomex, FMS etc.

2. Strong intensity

3. Excellent anti-abrasion,good finishing treatment

4. Good raw material, competitive price

5. High filtration efficiency

6. Fast delivery

7. Size can be customized

8. Factory manufacturer could contal quality and price

9. Strict quality inspection and control

10. Professional designer teams to match with your operating condition



Application field:

In industry dust collection

.  Power Plant Or Stations

Filtered dust, waste incineration, Flue ash, discharging flue ash  ,Coal dust

.  Building and Construction

Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,

Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminum

.   Chemical Industry

Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate Soap powder

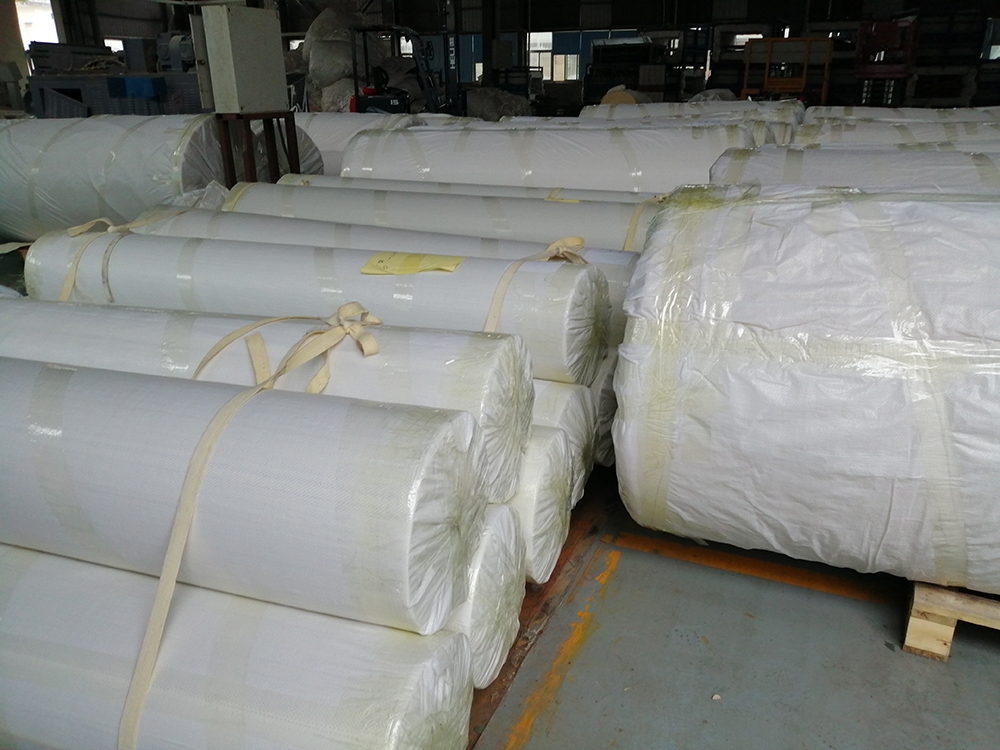

The air filter cloth packaging

Different types of filter needle punced felts must be individually packaged. In general, it is wrapped in plastic bags for water proof,or if you have special idea of package,we can do it and pls let me know.




FRQ

Q1. What is your terms of payment?

A: T/T will usually be accepted,details could be negotiated.

Q2. What is your terms of delivery?

A: FOB, CFR, CIF, DDU,EXW

Q3. How about your delivery time?

A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.

Q5. What is your sample policy?

A: we could offer the sample for free charge but do not pay the cost of freight.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

 2. We respect every customer as our friend and we sincerely do business and make  friends with them.
