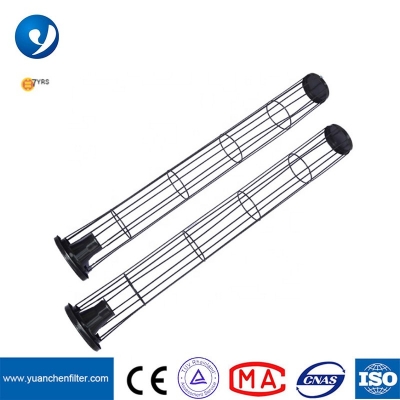

Galvanizing Bag Cage with Supporting Ring for Bag House Filtration
Product Description
Framework is the part that is used to support the outsife-mode filtration bag,to keep the tension and the shape of the filtration bag during dust-catching and dust-cleaning process.Poorly manufactured cages allow over-flexing of the fabric,abrasion,holes,and eventually lead to filter failure.
1.Round Dust Skeleton Filter Bag Cages
With a circular structure, the longitudinal reinforcement and the backing ring of the bag are evenly distributed.
Sufficient strength and rigidity to prevent damage and deformation
The cold stamping short tube is installed on the top to ensure the safety of the Aaron's vertical and protective filter bag mouth when blowing.
2.Dust Removal Skeleton Material Filter Bag Cages
Using 20# carbon steel, using a skeleton production line for one molding
Guaranteed straightness and twist, the filter bag frame is smooth after welding, no burr
Have enough strength to stay away
3.Adopt Galvanized Technology
The coating is firm, wear resistant and corrosion resistant
Avoiding corrosion of the skeleton surface and bonding of the filter bag after the dust collector is operated for a period of time
Guaranteed smooth bag change, while reducing damage to the bag during the loan repayment process
Filter Cage 10-80 80-120 120-240 10 Wires Match Filter Bags Round and Oval Filter Bag Cage
Material of filter bag cage:
1. Galvanized steel
2. Stainless steel304, 316,316L and etc.
3. Silicon power plated
Provide us the data of filter bag cage:
The quality of filter frame has directly bearing on the filtering state and service life of a filter bag. So the detailed and accuratedata can ensure the normal use of the product to the maximum extent. It' s great that you can provide design drawings, or if you provide data according to the following information.
1. Filter cage material and size
2. Quantity of vertical wires
3. Space of Horizontal wires
4. Wire diameter
5. Cell plate sizes of dust collector or baghouse
Joint types of filter bag:
Different joint different prices, please contact us to know more detail about the joint
Quality control:
1. No burrs and sharp edge on the surface and no false welding2. Vertical wires distribute equally,space tolerance is +/-2mm
Note:The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the dust removal frame filter bag cage can be according with the requirement from client.
Dimension Recommended for High Quality Pleated Dust Bag Filter Cage
A.Round Style
|
ΦDiameter |
Bag Diameter |
Length |
|
115 |
120 |
2000 2400 2800 3200 3600 4000 4400 4800 5200 5600 6000 |
|
125 |
130 |
|
|
147 |
152 |
|
|
195 |
200 |
B.Flat Style
|
Perimeter |
Bag Perimeter |
Length |
|
800 |
800 |
2000 3000 4000 |
|
900 |
900 |
5000 6000 |
C.Envelope Style
|
Length Width Thickness |
Bag Length Width Thickness |
|
1500*750*25 |
1500*750*25 |
The bag skeleton bone(dust filter cages) material of the dust collector is made of 20# carbon steel, which is formed at one time by the cage bone production line to ensure the straightness and torsion of the cage bone. The filter bag frame is smooth and free of burrs after being touch-welded, and has sufficient strength to prevent welding, false welding and missing welding.
The bag frame of the dust collector adopts organic silicon spraying technology, the coating is firm and corrosion-resistant, which avoids the rust of the cage bone surface and the adhesion of the filter bag after the dust collector works for a period of time, ensuring the smooth bag change and reducing the damage to the bag during the bag changing process.
How to install Industrial Dust Filter Frames?
1) Handle with care during installation, do not throw, do not drag on the ground, etc., so as not to damage the surface of the bag cage and the interface snap ring.
2) The cage has three sections, the upper, the middle, and the lower section. When installing, two people must cooperate. First put the next section into the filter bag carefully. When leaving a certain length, insert the steel bar into the bag cage, and then use the steel bar to move the lower section of the bag cage. Hang on the flower board. Then one person holds the upper section bag cage with both hands, and the other person inserts the pin into the pin hole.
3) After the upper and lower bag cages are connected, check whether they are connected firmly and whether the plug is inserted into the pin hole.
4) The whole bag cage frame is slowly lowered into the filter bag, and it is never allowed to quickly impact the bottom of the bag. If there is any abnormal blockage, find out the cause before inserting it.
5) Check the contact between the head cover of the bag and the flower plate. The contact between the head cover and the flower plate should be good. If there is a large looseness, carefully check the reason.
6) After the bag cage is installed, check the distance between the bottom ends of the filter bags, and adjust the distance between the bottom ends of the filter bags in the clean air chamber by rotating the bag cage to ensure that the bottoms of the filter bags do not collide with each other.
7) After installing the filter bag cage, all the packing boxes, membranes, installation tools and other materials must be taken out of the clean air chamber. Objects are not allowed to fall into the installed filter bag cage. , Should be removed in time.
Package of Industrial Customized filter cage 316L 304SS carbon steel material 135mm*6m 16 wire 4mm with venturi for bag filter matching filter bag
We provide all kinds of standard export packing for cargo protection. The dust bag filter will be fixed on the container. The filter bag and cages will be fixed in corrugated box and steel framed structure.
Application:
Application of Dust baghouse stainless steel filter bag venturi frames
- Mine industry.
- Medicine industry
- Plastic, food industry.
- Coal fired power stations.
- Steel power station.
- Cement industry.
- Paper industry.
- Building and construction industry.
- Other industrial segments.
FRQ
Q: Are you a trading company or a manufacturer?
A: We have our own factory.
Q: Do you support OEM made?
A: OEM is warmly welcomed, we can arrange your own color or label, print your OEM package, and make your own shape according to your drawing.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge, you only have to pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: How's the after-sale service?
A: We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment. For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Please feel free to contact us if you have any questions.
