Dust filter bags

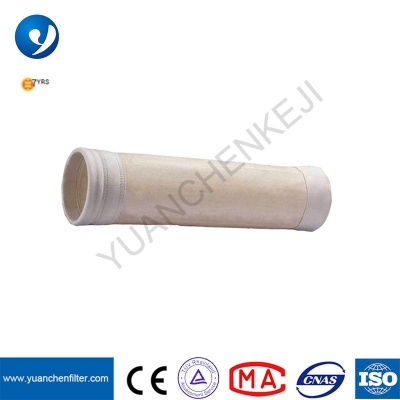

High efficiency nomex /aramid Dust Filter Bag in Steel Industry

Pulse jet nomex filter bag
Feature of Our Filter Bag
 A team consisting of designers, administrative personnel and operators
 The sewing equipments imported from abroad.
 All the related accessories with the bag designed and produced by ourselves.
 Developing the advanced methods to install bags so the renewal of bag is simplified.
 Selecting domestic and foreign excellent filter media according to different requirements.


  • Item NO.:

    Nomex-01
  • Payment:

    L/C, T/T, D/P, Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    7
  • Scrim Material:

    100%Nomex
  • Weight:

    500 550 600 gsm
  • Thickness:

    2±0.2mm
  • Temp. Range:

    Continue 204℃ Peak 240℃
  • Application:

    Cement,Steel,Construction,Metallurgy
  • Product Detail

High efficiency nomex /aramid Dust Filter Bag in Steel Industry


Technical Data for META ARAMID DUST COLLECTOR FILTER BAGS

Technical Specification

Name/Quality

100% Nomex

Component

Shell Fiber

100% Nomex



Scrim

PTFE

Weight

500±5%gsm

Thickness

2.0±0.2mm

Air Permeability /200Pa      L/dm2.min

130-180

Tensile Strength       N/5*20CM

Length

≥800



Cross

≥1200

Elongation at break%

Length

≤30



Cross

≤50

Temperature  ℃

Continue

200



Peaks

220

Finish

Singeing,Calendering,Heat-set

Use Scope

Cement, Steel,  Construction,Metallurgy, etc

Features

1.high-efficient filtering
2.easy dust cut off
3.durable and reliable
4.long lifetime
5.polyester material, other material is also available
6.shape: round, flat and envelope
7.type: impulse filter bag, vibrating filter bag and counter blowing filter bag.

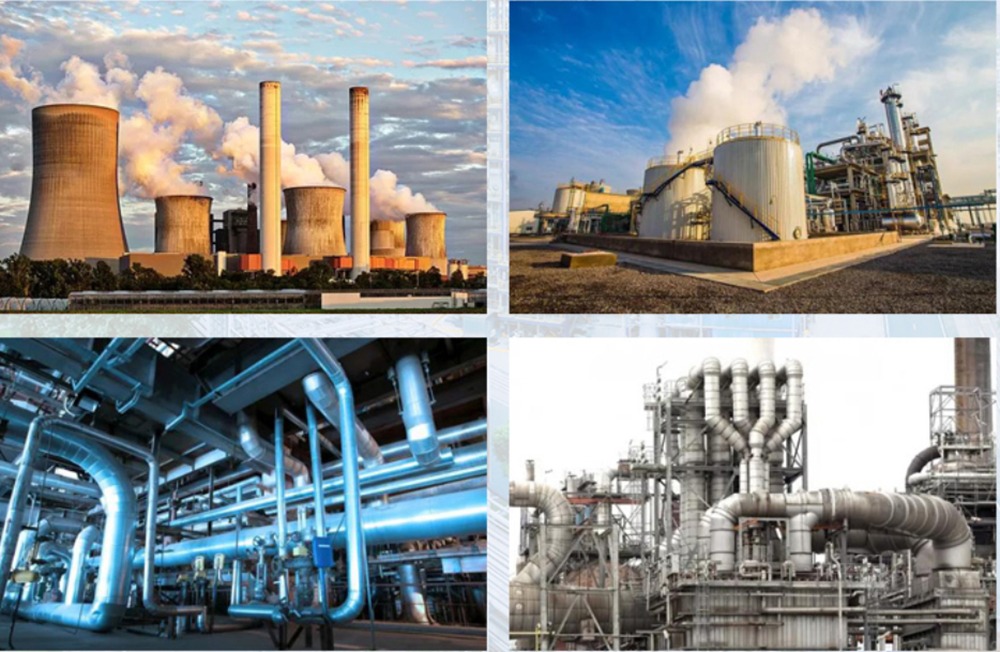

 Application field:

In industry dust collection

  • Power Plant Or Stations

Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dus

  • Building and Construction

Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,

Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminum

  • Chemical Industry

Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate Soap powder

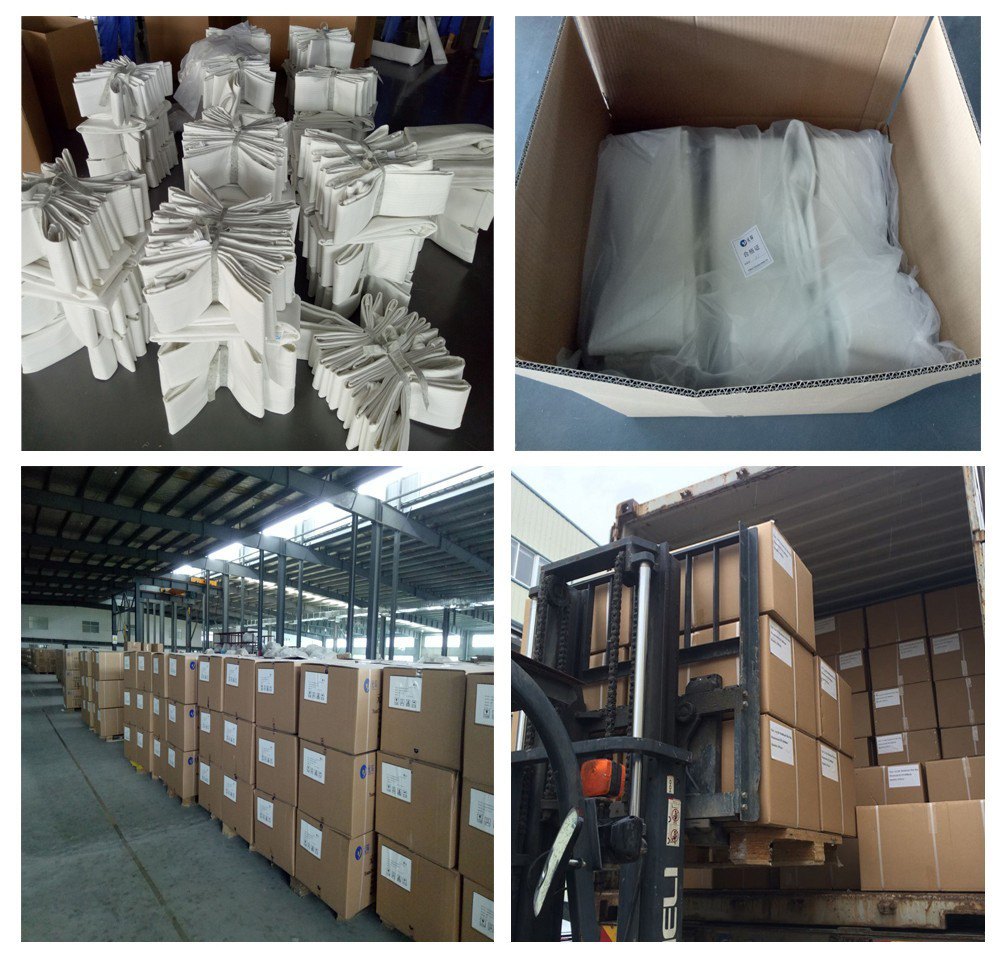

The nomex/ptfe/fms/fiberglass dust removal bag filter sleeves packaging:

Different types of bag filter cloth socks must be individually packaged. In general, it is wrapped in plastic bags for water proof, then put in a carton. stainless steel snap band Filter bag with the diameter of cell plate 135mm must be neat and regular packing, with the ring of the filter bag(whatever stainless steel or carbon material) to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.


7. FRQ:

Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU,EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
Generally, It will take 10 to 20 days after receiving your advanced payment. The specific delivery time depends on your items and quantity of your order.
