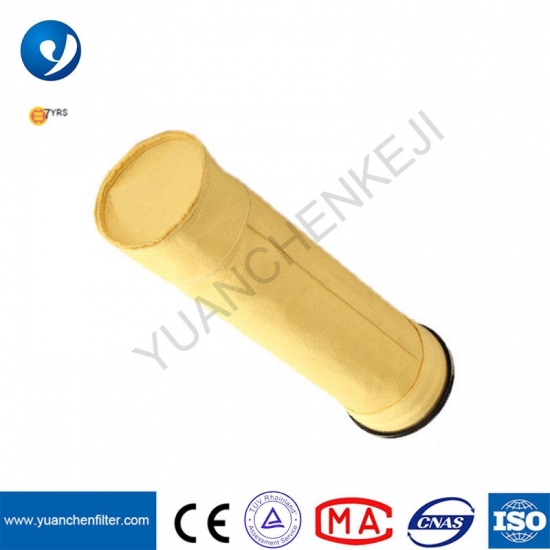

High Temperature Polyimide P84 Filter Bag with PTFE Coating
1. Brief Introduction
P84 high temperature resistant needle punched filter felt
The dust filter material has the following three notable characteristics:
1). Significant temperature resistance
The long-term use temperature is 260℃, and it has a safe space to cope with shutdowns and accidents.
2). Good chemical resistance
In the past ten years of waste incineration operations, the P84 filter bag has proven its value in filtering acid waste gas and alkaline dust.
3). Low backwash pressure and high elasticity of mud cake removal efficiency
The characteristics of P84 are notable due to the fineness of the fiber itself, and the irregular fiber cross-section maximizes the surface area of the fiber and provides a lot of tiny pores to make the surface filtration effect better than the depth filtration, and the dust only stays on the surface of the needle punched filter felt. However, it fails to penetrate into the filter felt, so the backwash pressure is small and the efficiency of filter cake bomb removal can be significantly improved. It has an excellent collection efficiency of fine particles and a small operating pressure difference.
P84 is widely used in waste incineration power plants, cement plants, steel plants, coal-fired boilers and other industries.
2. Physical Proerties of high temperature import Nomex air dust collector filter socks
Technical Specification
Name/Quality
100% P84
Component/
Shell Fiber
100% P84
Scrim
100% PTFE
Weight
500±5%gsm
Thickness
2.2±0.2mm
Air Permeability /200Pa L/dm2.min
130-180
Tensile Strength N/5*20CM
Length
≥800
Cross
≥1200
Elongation at break %
Length
≤30
Cross
≤50
Temperature ( Celsius Degree)
Continue
240
Peaks
260
Finish
Singeing, Calendering, Heat-set
Use Scope
Cement, Steel, Construction, Metallurgy,etc
3. Chemical Properties of Industry non-woven PP PE P84 PPS PTFE NMO FMS dust collector filter bag
✔Anti-acid
✔Anti-alkali
✔Anti-abrasion
✔Hydrolysis stability
4. installation diagram
1.unpack the filter bag
2.Insert flower board hole/cell plate
3.Knead the filter bag collar
4.Align the collar with the card
5.Adjust the position of the collar
6.Align the collar to confirm position
7.Filter bag installed in place
8.Check for appropriateness
9.Finally insert the dragon skeleton/dust collector accessories filter cages
5. Application field:
P84 is mainly used in flue gas purification of asphalt mixing, cement kiln, drying, burning, smelting, various industrial kiln, coal-fired boiler and waste incineration, and is widely used in processes with high emission concentration requirements.
6. The High temperature polyimide p84 filter bag with ptfe coating packaging:
Different types of filter bag must be individually packaged. In general, it is wrapped in plastic bags for water proof, then put in a carton. Filter bag must be neat and regular packing, with the ring of the filter bag to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.
7. FRQ:
Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU,EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
