Dust filter bags

Non-woven Filter Fabric Industrial Antistatic Polyester Needle Punched Felt With Autefa

Breathable, Anti-Static,Aperture density uniform,Low resistance,large flow rate.
  • Item NO.:

    Polyester-06
  • Payment:

    L/C, T/T, D/P, Western Union, Paypal
  • Product Origin:

    China
  • Color:

    Light Grey
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    7
  • Scrim Material:

    100%PE
  • Weight:

    500 550 600 gsm
  • Thickness:

    2±0.2mm
  • Temp. Range:

    Continue 130℃ Peak 150℃
  • Application:

    Cement,Steel,Construction,Metallurgy
  • Product Detail

Non-woven Fabric Industrial Antistatic Polyester Needle Punched Felt Filter Cloth


1. Brief Introduction Of Blended Anti-static Filter Material

In the industrial dust collection system, if we use bags to collect dust, the filter media of the bags must be anti-static. It not only requires the technology of ordinary needled felt, but also needs to combine conductive fibers into transverse yarns or combine conductive fibers and conductive materials into chemical fibers in the needled felt base fabric.


The anti-static filter cloth from Yuanchen was designed for dust collection in the occasion of dust air with some flammable or explosive materials, such as the flour dust, aluminum dust, coal dust, and some explosive powder materials in the industries such as chemical, etc.



2、We pay attention to following processing matters:
(1) Precise design required size of the filter cloth for filter bag parts, the filter cloth will larger than the actual amount design size, to leave a spare for weaving.
(2) To choose the right filter bag accessories, specifications and check its quality. The filter bag accessories should match the filter bag quality requirements.
(3) We make the filter bag line drawing, cutting, sewing on automatic production line. When the filter bag need manual processing, we will open it on the operation platform, and with certain pulling force to keep it is flat.
(4) We keep the strict processing quality standards, according to design drawings and operation process. Our worker meet the requirements of tooling and clothing , no smoking.
(5) We have the responsible for the processing of products, and examines, waste, residue, defective goods in the beginning.


Technical Specification/技术参数

Name/Quality

100% PE

Component

Shell Fiber

100% PE

Scrim

100% PE filament fiber

Weight

550gsm±5%

Thickness

1.9mm ± 0.2

Air Permeability /200 Pa  L/dm2.min

20-50

Tensile Strength   N/5*20CM

Length

≥1000

Cross

≥1500

Elongation at break %

Length

≤30

Cross

≤50

Temperature                                       ( Celsius Degree)

Continue

130

Peaks

150

Finish

Singeing, Calendering, Heat-set, PTFE Membrane

Use Scope

Cement, Steel,  Construction, Metallurgy


3. Remarks
1) The length of dust filter bags:  can be customized
Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
2) Process Method: automatic sewing or welded
3)Production details: Double bottoms and reinforcement to make abrasion resistance. Sewing thread: PTFE thread, polyester thread.
4)Inspection:  Filter bags will be according to the national standards, industrys standards and enterprise standards.
5) If your required filter bag is different from our usual one, then please send us your drawing picture and choose material you need since we also produce the nonstandard filter bag.


4. Advantages of Us:

1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE, Nomex, FMS etc.
2.Strong intensity
3.Excellent anti-abrasion,good finishing treatment
4.Good raw material, competitive price
5.High filtration efficiency
6.Fast delivery
7.Size can be customized
8.Factory manufacturer could contal quality and price
9.Strict quality inspection and contol
10.Professional designer teams to match with your operating condition


5. Application field:

In industry dust collection

  • Power Plant Or Stations

Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dust

  • Building and Construction

Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,

Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminum

  • Chemical Industry

Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate Soap powder


6. The needle punched filter cloth packaging:

packed into a waterproof PE bag!



7. FRQ:

Q1. What is your terms of payment?

A: T/T will usually be accepted,details could be negotiated.


Q2. What is your terms of delivery?

A: FOB, CFR, CIF, DDU,EXW


Q3. How about your delivery time?

A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.


Q5. What is your sample policy?

A: we could offer the sample for free charge but do not pay the cost of freight.


Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery


Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

 2. We respect every customer as our friend and we sincerely do business and make  friends with them.

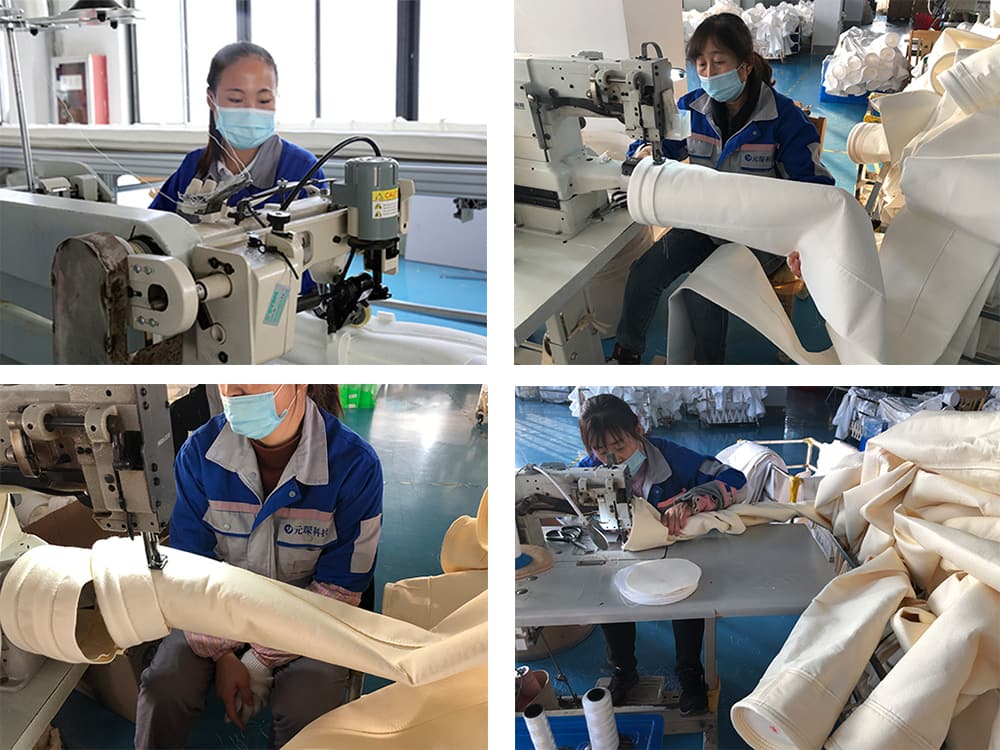

8. Workshop
