Dust filter bags

P84 Non Woven Filter Bag Media with The Best Price

P84 filter bag is flame retardant, high temperature-resistant. Under the condition of 240 °C, the mechanical properties of P84 polyimide fiber filter material will not change, and the highest temperature resistance can reach 260 °C. The P84 polyimide fiber is not a hygroscopic fiber filter (about 3% water absorption at 65% relative humidity). In addition, P84 fiber is often implanted on the surface of the filter material to improve the filtration performance of the filter material.
  • Item NO.:

    P84-01
  • Payment:

    L/C, T/T, D/P, Western Union, Paypal
  • Product Origin:

    China
  • Color:

    Yellow
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    7
  • Scrim Material:

    100%PTFE
  • Weight:

    500±5%gsm
  • Thickness:

    2.2±0.2mm
  • Temp. Range:

    Continue 240℃ Peak 260℃
  • Application:

    Cement,Construction,Metallurgy
  • Product Detail

P84 Non Woven Filter Bag Media with The Best Price


1. Brief Introduction Of P84 Dust Needle Punched Filter Bag Sleeves

The P84 polyimide fiber is not a hygroscopic fiber filter (about 3% water absorption at 65% relative humidity). In addition, P84 fiber is often implanted on the surface of the filter material to improve the filtration performance of the filter material.


2. Physical Proerties of Polyimide PI / P84 Dust Filter Bags

Technical Specification

Name/Quality

100% P84

Component/

Shell Fiber

100% P84

Scrim

100% PTFE

Weight

500±5%gsm

Thickness

2.2±0.2mm

Air Permeability /200Pa  L/dm2.min

130-180

Tensile Strength  N/5*20CM

Length

≥800

Cross

≥1200

Elongation at break %

Length

≤30

Cross

≤50

Temperature                                          ( Celsius Degree)

Continue

240

Peaks

260

Finish

Singeing, Calendering, Heat-set

Use Scope

Cement, Steel,  Construction, Metallurgy,etc


3. Chemical Properties of Needle felt filter bag socks for dust collection
✔Anti-acid
✔Anti-alkali
✔Anti-abrasion
✔Hydrolysis stability



4. installation diagram

1.unpack the filter bag
2.Insert flower board hole/cell plate
3.Knead the filter bag collar
4.Align the collar with the card
5.Adjust the position of the collar
6.Align the collar to confirm position
7.Filter bag installed in place
8.Check for appropriateness
9.Finally insert the dragon skeleton/dust collector accessories filter cages


5. Application field:

P84 is mainly used in flue gas purification of asphalt mixing, cement kiln, drying, burning, smelting, various industrial kiln, coal-fired boiler and waste incineration, and is widely used in processes with high emission concentration requirements.

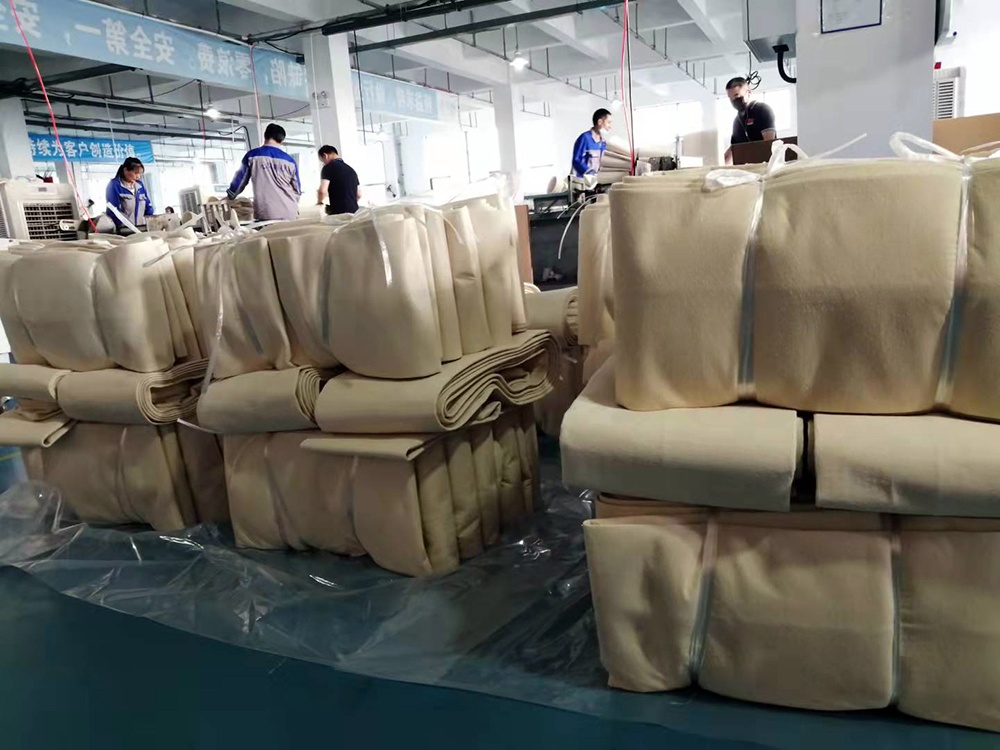

6. The Water-Oil repellent Non-woven needle felt P84/Polyimide dust filter bag with PTFE membrane for air filter collector packaging:

Different types of filter bag must be individually packaged. In general, it is wrapped in plastic bags for water proof, then put in a carton. Filter bag must be neat and regular packing, with the ring of the filter bag to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.





7. FRQ:

Q1. What is your terms of payment?

A: T/T will usually be accepted,details could be negotiated.


Q2. What is your terms of delivery?

A: FOB, CFR, CIF, DDU,EXW


Q3. How about your delivery time?

A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.


Q5. What is your sample policy?

A: we could offer the sample for free charge but do not pay the cost of freight.


Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery


Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

 2. We respect every customer as our friend and we sincerely do business and make  friends with them.
