Dust filter bags

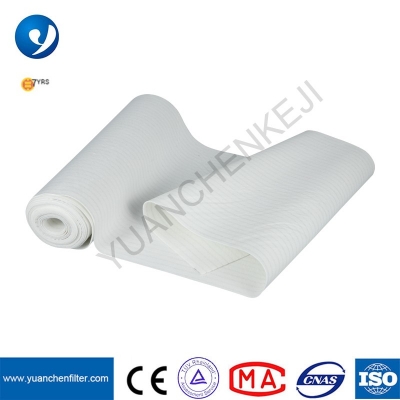

Strip Anti-static Scrim Polyester Dust Collector Non Woven Filter Fabric

We are YUANCHEN GROUP,with more than 16 years' experience of dust filter bag, dust filter material, filter bag cage, honeycomb catalyst and other spare parts used on the dust collectors.

  • Item NO.:

    Polyester-04
  • Payment:

    T/T,L/C,PAYPAL,WESTERN UNION,negotiable
  • Product Origin:

    China
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    7
  • Scrim Material:

    100%PE
  • Weight:

    500 550 600 gsm
  • Thickness:

    2±0.2mm
  • Temp. Range:

    Continue 130℃ Peak 150℃
  • Application:

    Cement,Steel,Construction,Metallurgy
  • Product Detail

Strip Anti-static Scrim Polyester Dust Collector Non Woven Filter Fabric


1.Brief Introduction

The dust collector filter bag(which is made by needle punched felt ) is the main and most important component of the bag filter. When dust gas is filtered through a filter bag, the fibers of the bag sieve and retain the dust, making the dust gas kept on the surface of the bag to separate the dust from the gas and purify the gas. Dust collector filter bags are divided into different materials: PTFE bag, fiberglass filter bag, P84 bag, PPS bag, aramid bag, homopolymer acrylic bag, polyester bag, etc.

2.Technical Specification for anti-static filter fabrics

Technical Specification

Name/Quality

100% PE

Component

Shell Fiber/纤维

100% PE



Scrim/基布

100% PE filament fiber

Weight

500±5% gsm

Thickness

1.9±0.2mm

Air Permeability /200Pa  L/dm2.min

20-50

Tensile Strength   N/5*20CM

Length

≥1000



Cross

≥1500

Elongation at break %

Length

≤30



Cross

≤50

Temperature                                       ( Celsius Degree)

Continue

130



Peaks

150

Finish

Singeing,Calendering,Heat-set,PTFE Membrane

Use Scope

Cement, Steel,  Construction, Metallurgy


3.Remarks

1) The length of dust filter bags:  can be customized

Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.

2) Process Method: automatic sewing or welded

3)Prodction details:Double bottoms and reinforcement to make abrasion resistance.

Sewing thread: PTFE thread, polyester thread.

4)Inspection:  Filter bags will be according to the national standards, industry

standards and enterprise standards.

5) If your required filter bag is different from our usual one, then please send us your drawing picture and  choose material you need since we also produce the nonstandard filter bag.


4.Advantages of the dust filter cloth:

1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.

2.Strong intensity

3.Excellent anti-abrasion,good finishing treatment

4.Good raw material, competitive price

5.High filtration efficiency

6.Fast delivery

7.Size can be customized

8.Factory manufacturer could contal quality and price

9.Strict quality inspection and contol

10.Professional designer teams to match with your operating condition


5.Application field:

In industry dust collection

  • Power Plant Or Stations

Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dus

  • Building and Construction

Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,

Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminu

  • Chemical Industry

Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate

Soap powder

6.Packaging:

packed into a waterproof PE woven bag


7.Workshop


8.FRQ:

Q1. What is your terms of payment?

A: T/T will usually be accepted,details could be negotiated.


Q2. What is your terms of delivery?

A: FOB, CFR, CIF, DDU,EXW


Q3. How about your delivery time?

A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.


Q5. What is your sample policy?

A: we could offer the sample for free charge but do not pay the cost of freight.


Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery


Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make  friends with them.
