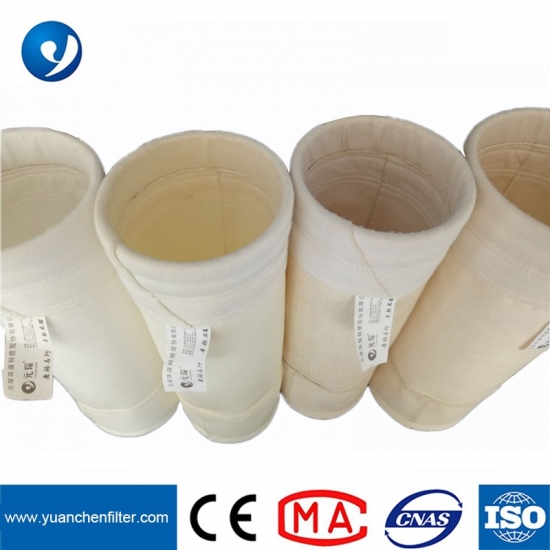

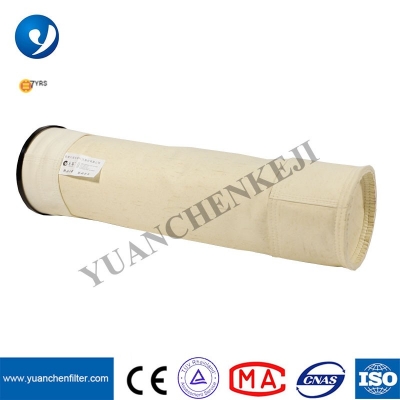

Asphalt Mixing Plant Nomex Needled Felt Air Filter Bag
1. Speciality of aramid filter bags for dust collection system
Speciality for industrial yuanchen factory production filter bags
1. High Temperature resistant
2. Resists flexing and abrasion
3. Effect of moisture
4. Good chemical resistance
5. Dimensional Stability
6. Flame resistance
2.The technical data of Nomex needled felt
Nomex filter bag ,Nomex filter ,Aramid filter ,Aramid bag filter,Nomex bag filter ,
|
Technical Specification |
||
|
Name/Quality |
100% Nomex |
|
|
Component |
Shell Fiber |
100% Nomex |
|
|
Scrim |
PTFE |
|
Weight |
500±5%gsm |
|
|
Thickness |
2.0±0.2mm |
|
|
Air Permeability /200Pa L/dm2.min |
130-180 |
|
|
Tensile Strength N/5*20CM |
Length |
≥800 |
|
|
Cross |
≥1200 |
|
Elongation at break% |
Length |
≤30 |
|
|
Cross |
≤50 |
|
Temperature ℃ |
Continue |
200 |
|
|
Peaks |
220 |
|
Finish |
Singeing,Calendering,Heat-set |
|
|
Use Scope |
Cement, Steel, Construction,Metallurgy, etc |
|
3. Remarks
1) The length of dust filter bags: can be customized
Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
2) Process Method: automatic sewing or welded
3) Prodction details:Double bottoms and reinforcement to make abrasion resistance.
Sewing thread: PTFE thread, polyester thread.
4) Inspection: Filter bags will be according to the national standards, industry standards and enterprise standards.
5) If your required filter bag is different from our usual one, then please send us your drawing picture and choose material you need since we also produce the nonstandard filter bag.
4. Features
1.high-efficient filtering
2.easy dust cut off
3.durable and reliable
4.long lifetime
5.polyester material, other material is also available
6.shape: round, flat and envelope
7.type: impulse filter bag, vibrating filter bag and counter blowing filter bag.
5. Application field:
In industry dust collection
- Power Plant Or Stations
Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dus
-
Building and Construction
Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,
Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminum
- Chemical Industry
Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate Soap powder
6. The filter cloth bags packaging:
Different types of filter bag must be individually packaged. In general, it is wrapped in plastic bags for water proof, then put in a carton. Filter bag must be neat and regular packing, with the ring of the filter bag to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.
7. FRQ:
Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU,EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
Generally, It will take 10 to 20 days after receiving your advanced payment. The specific delivery time depends on your items and quantity of your order.
