Industrial Acrylic Polyester Dust Filter Bag for Cement Plant Asphalt Plant Supply of Filter Bags for Chinese Dust Collectors

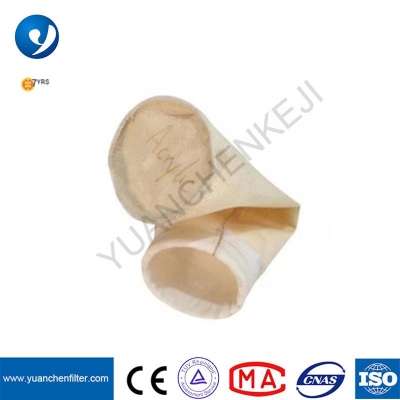

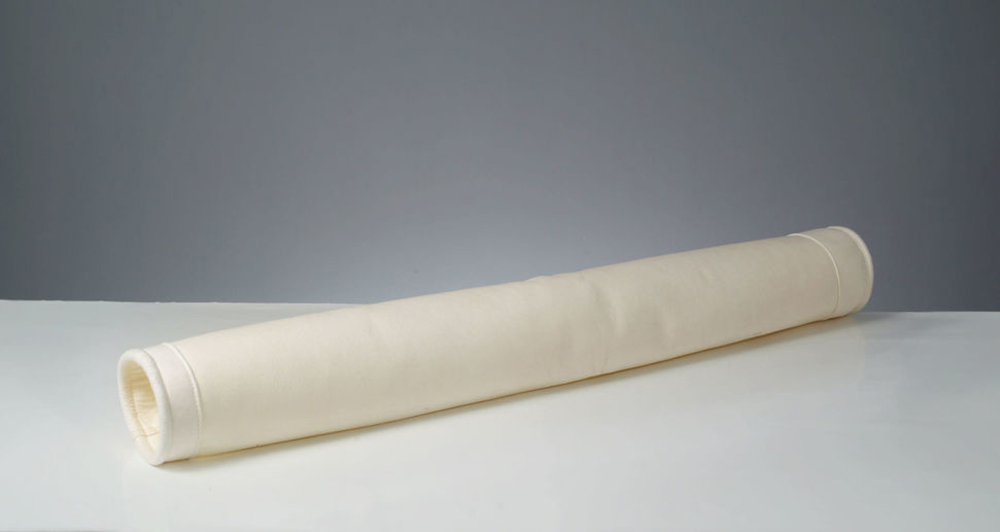

1. Brief Introduction Of Acrylic Filter Fabric Bags
We mainly produce dust collector filter bags with the material of acrylic,Polyamide/P84,Polyester,nomex/aramid,PTFE,fiberglass and so on.It can be divided into three types: staple fiber,multifilament and filament,from those items above our customers will have a wide range of selection.The products are commonly important part of all kinds of filtration products for dust collector,such as filter cages,venturi,Pulse valve,Controller,etc.
And in conclusion, our other products for your choice:
Normal temperature filter bag: PET, pp, antistatic, water and oil repellent, PET membrane, Acrylic.
High temperature filter bag: FMS, Nomex, PPS, PTFE, fiberglass, p84 fiber.
2. Technical Data
Technical Specification
Name/Quality
100% acrylic w/ PTFE membrane
Component
Shell Fiber
100% Acrylic (DT)
Scrim
100% Acrylic (DT)
Weight
550g
Thickness
2.0mm
Air Permeability /127Pa cm3/cm2.s
4
Tensile Strength N/5*20CM
Length
≥800
Cross
≥1000
Elongation at break %
Length
≤25
Cross
≤35
Temperature ℃
Continue
125
Peaks
140
Finish
Heat Stabilization,Glaze, Singe, PTFE macerate,PTFE Membrane
Use Scope
Cenment, Steel, Construction，Metallurgy;
3. Remarks
1) The length of dust bag filter bags: can be customized
Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
2) Process Method: automatic sewing or welded
3) Prodction details:Double bottoms and reinforcement to make abrasion resistance.
Sewing thread: PTFE thread, polyester thread.
4) Inspection: Non Woven Filter bags will be according to the national standards, industry standards and enterprise standards.
5) If your required dust filter bag is different from our usual one, then please send us your drawing picture and choose material you need since we also produce the nonstandard filter bag.
4. Advantages:
1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE, Nomex, FMS etc
2.Strong intensity
3.Excellent anti-abrasion,good finishing treatment
4.Good raw material, competitive price
5.High filtration efficiency
6.Fast delivery
7.Size can be customized
8.Factory manufacturer could control quality and price
9.Strict quality inspection and contol
10.Professional designer teams to match with your operating condition
5. Application field:
In industry dust collection
- Power Plant Or Stations
Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dus
-
Building and Construction
Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,
Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminum
- Chemical Industry
Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate Soap powder
6. Packing Details:
1).Plastic film inside and big carton outside , Export sea/air package;
2).Can offer pallets if need.
3).We make package as customer requirement.
4).We can offer the OEM label in the woven bag if quantity is big.
7. FRQ:
Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU,EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
