Dust filter bags

Industry Air Permeability Alkali Resistance High Temperature Glass Fiber Dust Filter Bags

1.Bag filter is mainly used in coating, paint, organic materials
2.Single sieve structure, can be directly in the filtrate impurity in UF. thus, also called material surface surface filtering model;
3.The filter bag is one of the advantages of using single structure and low cost, cleaning, but because it is easy to cause the surface filtering model, the filter bag surface jam;
4.Therefore, the most suitable for use in low precision rough careless occasion
5.Applicable to paper, textile, metallurgy, petrochemical, food, medicine, life, such as environmental protection coating, paint, involving the water, oil filter processing industries;
6.Coating, CaCO3 slurry purification filters;
7.Pigment, dyestuff, ink, paint, etc;
8.Vinyl, benzene, acetone, ethanol, glycerol and other organic materials;
9.Raw water, sewage, plain water, water clear filtration, etc;
10.Dynamic, vegetable oil, sugar, fruit juice and various potions filtering;
11.Polymer, polyester filtering, etc;
12.Crude oil, fuel oil, lubricating oil, hydraulic oil filter, etc



  • Item NO.:

    Fiberglass-01
  • Payment:

    L/C, T/T, D/P, Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    7
  • Scrim Material:

    100% fiberglass
  • Weight:

    450 550 750gsm
  • Thickness:

    2.2±0.2mm
  • Temp. Range:

    Continue 280℃ Peak 300℃
  • Application:

    Cement,Construction,Metallurgy
  • Product Detail

Industry Air Permeability Alkali Resistance High Temperature Glass Fiber Dust Filter Bags

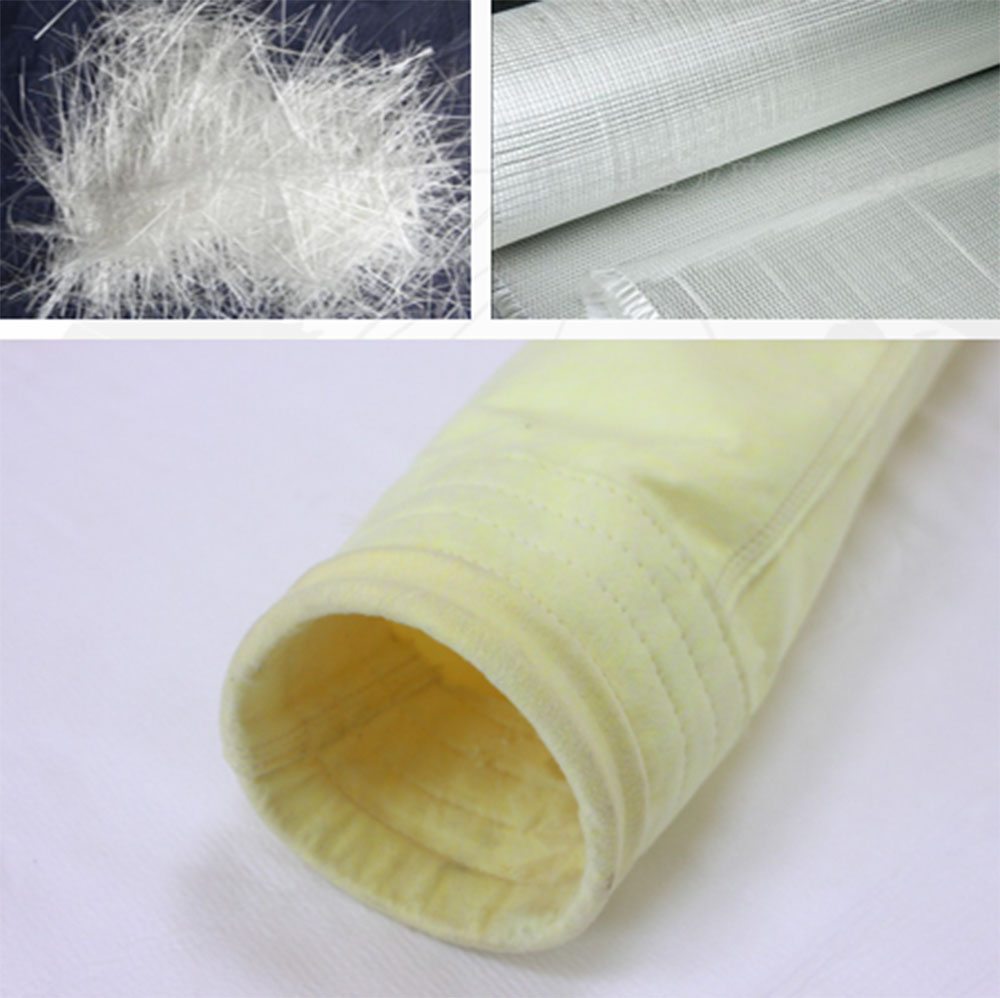

1. Glass Fiber Introduction

Glass fiber is an inorganic non-metallic material with excellent performance. Its main components are silicon dioxide, aluminum oxide, calcium oxide, boron oxide, magnesium oxide, sodium oxide, etc., with high tensile strength and low elongation (3%) ; High elasticity coefficient, good rigidity; large elongation within the elastic limit and high tensile strength, so the impact energy is absorbed; inorganic fiber, non-combustible, good chemical resistance; low water absorption; dimensional stability, heat resistance Good properties; good processability, and can be made into products of different forms such as strands, bundles, felts, and woven fabrics.


2. Technical Data

Material Temperature
Application
Fiberglass mixed polyester
180-220 Degree C
Steel Plant ,Chemical Plant
Fiberglass mixed Aramid
220-250 Degree C
Chemical Blast furnace gas
Fiberglass mixed PPS and PTFE
240-260 Degree C
Coal-fired boiler ,biomass boiler
Fiberglass mixed PPS
200-230 Degree C
Coal-fired boiler ,biomass boiler
Fiberglass mixed P84
240-280 Degree C
Cement Kill

3. Remarks
1) The length of fiberglass dust filter bags:  can be customized

Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
2) Process Method: automatic sewing or welded
3) Prodction details:Double bottoms and reinforcement to make abrasion resistance.
Sewing thread: PTFE thread, polyester thread.
4) Inspection:  Filter bags will be according to the national standards, industry standards and enterprise standards.
5) If your required baghouse filter bag for cement plant is different from our usual one, then please send us your drawing picture and  choose material you need since we also produce the nonstandard filter bag.

4. Feature

1. High Temperature Resistance:240-280
2. Excellent Acid and Alkali resistance
3. Abrasion resistance, high tensile strength
4. Low resistance of filtration
5. Single fiber, high porosity, gas filtration resistance
6. Can be used in a variety of complex situation and harsh environmental conditions


5. Application field:

Suitable for cement ,coal burning boiler,garbage incineration,steel making electric furnace,blast furnace gas,ferroalloy furnace and other high temperature flue gas and dust collection.


6. The dust collector fiberglass filter bag packaging:

Different types of filter bag must be individually packaged. In general, it is wrapped in plastic bags for water proof, then put in a carton. Filter bag must be neat and regular packing, with the ring of the filter bag to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.






7. FRQ:

Q1. What is your terms of payment?

A: T/T will usually be accepted,details could be negotiated.


Q2. What is your terms of delivery?

A: FOB, CFR, CIF, DDU,EXW


Q3. How about your delivery time?

A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.


Q5. What is your sample policy?

A: we could offer the sample for free charge but do not pay the cost of freight.


Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery


Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

 2. We respect every customer as our friend and we sincerely do business and make  friends with them.
