Industrial Dust Filter Frame Filter Cage


The filter frame is the support of dust filter bags and it should be light and easy for installing and maintenance. The quality of filter frame has directly influence the filtering state and useing life of dust filter bags.


  • Item NO.:

    Cage
  • Payment:

    T/T,L/C,PAYPAL,WESTERN UNION,negotiable
  • Product Origin:

    China
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    7
  • Product name:

    Filter Cage
  • Usage:

    Baghouse Dust
  • Shape:

    Round
  • Size:

    Customized
  • Material:

    Stainless Steel,Carbon Steel
  • MOQ:

    1pc
  • Product Detail

Galvanized Treatment Dust Collector Filter Bag Cage


Product Description

Filter bag cage is the rib of filter bag, it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every baghouse fiter cage we make can meet therequirement for tightness, smoothness and uprightness.

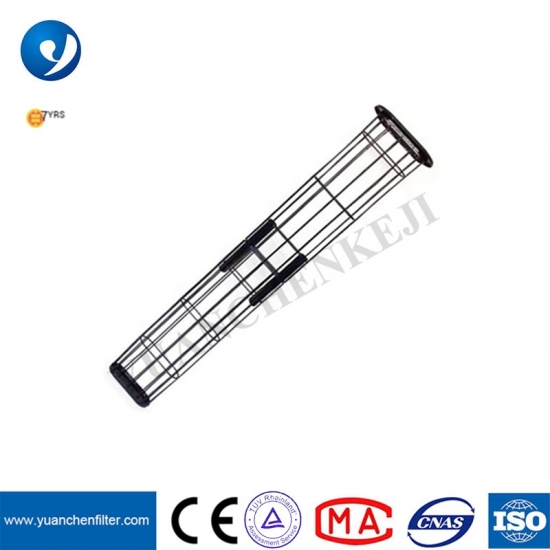

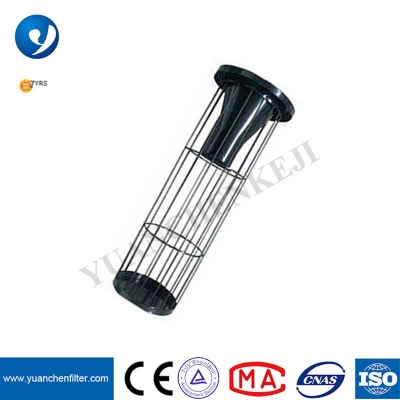

 1.Round Dust Skeleton Filter Bag Cages
With a circular structure, the longitudinal reinforcement and the backing ring of the bag are evenly distributed.
Sufficient strength and rigidity to prevent damage and deformation
The cold stamping short tube is installed on the top to ensure the safety of the Aaron's vertical and protective filter bag mouth when blowing.

2.Dust Removal Skeleton Material Filter Bag Cages
Using 20# carbon steel, using a skeleton production line for one molding
 Guaranteed straightness and twist, the filter bag frame is smooth after welding, no burr
Have enough strength to stay away

3.Adopt Galvanized Technology
The coating is firm, wear resistant and corrosion resistant
 Avoiding corrosion of the skeleton surface and bonding of the filter bag after the dust collector is operated for a period of time
 Guaranteed smooth bag change, while reducing damage to the bag during the loan repayment process


Technical Data

Parameter Value
Material
carbon steel, galvanized steel, 304 stainless steel, 316 stainless steel.
Wire diameter
3mm, 3.2mm, 3.5mm, 3.8mm, 4mm, 5mm.
Horizontal bar type
round, envelop, flat.
Vertical wire number
8, 10, 12, 16, 20, 24.
Ring space
15.24cm or 20.32cm.
Cage diameter
100mm - 200mm
Style of connection
clamp, chuck, claw join, guide plate.
Surface treatment
galvanization, silicon coating or epoxy, PVC vinyl coating.

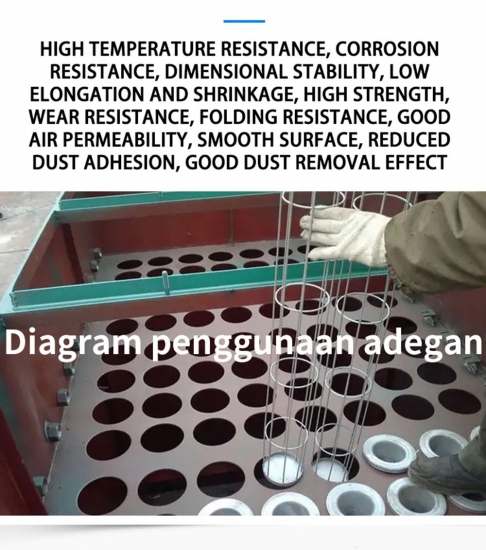

How to install Industrial Dust Filter Cages?

1) Handle with care during installation, do not throw, do not drag on the ground, etc., so as not to damage the surface of the bag cage and the interface snap ring.
2) The cage has three sections, the upper, the middle, and the lower section. When installing, two people must cooperate. First put the next section into the filter bag carefully. When leaving a certain length, insert the steel bar into the bag cage, and then use the steel bar to move the lower section of the bag cage. Hang on the flower board. Then one person holds the upper section bag cage with both hands, and the other person inserts the pin into the pin hole.
3) After the upper and lower bag cages are connected, check whether they are connected firmly and whether the plug is inserted into the pin hole.
4) The whole bag cage frame is slowly lowered into the filter bag, and it is never allowed to quickly impact the bottom of the bag. If there is any abnormal blockage, find out the cause before inserting it.
5) Check the contact between the head cover of the bag and the flower plate. The contact between the head cover and the flower plate should be good. If there is a large looseness, carefully check the reason.
6) After the bag cage is installed, check the distance between the bottom ends of the filter bags, and adjust the distance between the bottom ends of the filter bags in the clean air chamber by rotating the bag cage to ensure that the bottoms of the filter bags do not collide with each other.
7) After installing the filter bag cage, all the packing boxes, membranes, installation tools and other materials must be taken out of the clean air chamber. Objects are not allowed to fall into the installed filter bag cage. , Should be removed in time.


Package


Application:

Application of Dust baghouse stainless steel filter bag venturi frames

  • Mine industry.
  • Medicine industry
  • Plastic, food industry.
  • Coal fired power stations.
  • Steel power station.
  • Cement industry.
  • Paper industry.
  • Building and construction industry.
  • Other industrial segments.


FRQ

Q: Are you a trading company or a manufacturer?

A: We have our own factory.


Q: Do you support OEM made?

A: OEM is warmly welcomed, we can arrange your own color or label, print your OEM package, and make your own shape according to your drawing.


Q: Do you provide samples ? is it free or extra?

A: Yes, we could offer the sample for free charge, you only have to pay the cost of freight.


Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to

quantity.


Q: How's the after-sale service?

A: We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment. For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.


Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.


Please feel free to contact us if you have any questions.
