MANUFACTURING High Temperature SCR Denitration Catalyst

SCR technology is  a recation at use of  the denitration catalyst at a certain temperature(270-400 degree),that NOX in the flue gas mixed with  ammonia gas from the reducing agent  supply  the system after the occurence of the selective catalytic reduction reaction of nitrogen and water ,thereby  reducing NOX emissions , and reducing smoke  pollution to the environment.

  • Item NO.:

    SCR
  • Payment:

    T/T,L/C,PAYPAL,WESTERN UNION,negotiable
  • Product Origin:

    China
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    7
  • Product name:

    SCR catalyst for Nox reduction
  • Usage:

    Emission reduction
  • Shape:

    Porous Cylinder (13 to 25 Holes)
  • Size:

    Customer Demand
  • Material:

    cordierite SIC
  • MOQ:

    1 CBM
  • Product Detail

Factory Price Sell Ultra High Temperature SCR Denitration Catalyst


Product Description

Selective catalytic reduction (SCR) catalyst called SCR flue gas denitrationcatalyst, SCR technology is denitration catalyst in the appropriate temperature, using ammonia (NH3) as the reducing agent, take the advantage of the reducing agent selective, preferentially reaction with industrial flue gas of nitrogen oxide (NOx), NOx is converted into no pollution of nitrogen and water, and NOx reduction efficiency is as high as above 90%. Thereby reducing NOx emissions, and reducing smoke pollution to the environment. SCR denitration technology has become the mainstream technology of flue gas denitrification in the world.
At present, the commercial SCR catalysts are basically using TiO2 as base material and V2O5 as the main active ingredient, with WO3 and MoO3 as anti-oxidation and anti-poisoning auxiliary components.

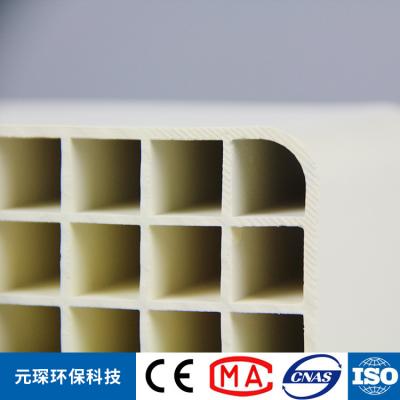

There are three types of SCR catalysts in the market, honeycomb catalyst, plate-types catalyst and corrugated catalyst. Commonly used is the honeycomb catalyst, plate-types catalyst. Honeycomb SCR catalyst is a porous honeycomb homogeneous product, its main backing material is TiO2, WO3, and V2O5and so on.

Applications

selective catalytic reduction(SCR) catalyst is widely used in thermal power plants,coal fired power plants,waste incineration plants,steel plants,fertilizer plants,nitric acid plants,cement plants,petrochemical chemical plants and other all industrial which need to reduce the NOX emissions,also used in diesel engines tail gas treatment etc.


Main specifications & technical index of SCR Honeycomb Catalyst:

Hole

Number

(PCS)

Cross Section

(mm)

Hole

Dia.

(mm)

Wall Thickness

(mm)

Catalyst Pitch

(mm)

Open Porosity

(%)

Specific Surface Area

(m2/m3)

Applicable Scope

15×15

150×150

8.45

1.35

9.80

71.40

338

Coal fired unit, high smoke dust

16×16

150×150

8.00

1.20

9.20

72.82

383

18×18

150×150

7.10

1.10

8.20

72.60

409

Coal fired unit, medium dust

20×20

150×150

6.40

1.00

7.40

72.82

469

21×21

150×150

6.10

0.95

7.05

72.93

478

Coal fired unit, low smoke dust

22×22

150×150

5.80

0.90

6.70

72.36

499

25×25

150×150

5.00

0.90

5.90

69.44

577

Coal fired unit, very low dust

30×30

150×150

4.10

0.80

4.90

67.24

693

Oil fired unit, very low dust

35×35

150×150

3.65

0.55

4.20

72.53

795

40×40

150×150

3.20

0.50

3.70

72.82

910

Natural gas fired unit

45×45

150×150

2.78

0.50

3.28

69.56

1000

55×55

150×150

2.20

0.50

2.70

65.07

1275

Unit catalyst size:150×150×(length300-1350) mm.

According to the customer's requirements, we can produce different pitch and formulations of honeycomb SCR de NOx catalyst.

How to react?

The  chemical eauation  for a selective catalytic reaction process is :
4NO+4NH3+O2→4N2+6H2O           6NO2+8NH3→7N2+12H20         NO+NO2+2NH3→2N2+3H20


2 Designs for the place of SRC catalyst


The Honeycomb Catalyst Packaging

The catalyst is packed into an iron frame,then use pe bag packed in case into the damp

After Sale Service

1.OEM Manufacturing welcome: Product, Package...

2. Sample order

3. We will reply you for your inquiry within 24 hours.

4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

5.Quality Guarantee, If there have any quality problems with products, we are willing to be replaced free.

6.rapid response, the engineer installation guide. The feedback problems will be replied within 24 hours.If any problem, We will arrange professional engineers within 48 working hours to solve it.

7. All goods will be inspected and tested before shipment.

Customer’s satisfactory is most important to us. If you have any problems about our products. Please feel free to contact us with any comments you may have;


FAQ

Q: Are you manufacturer or trading company?
A: We are the professional manufacturer and exporter, more than 16 years experience.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Anhui Province,3 hour by high speed rail from Shanghai.Warmly welcome to visit us anytime.
Q: How do you control the quality?
A: We insist "Quality First, Customer First", always pay attention to quality control from the beginning to the end,Alibaba Gold Supplier,TUV certification assigned by Made-in-China.
Q: How can I get the quotation?
A: Tell us the specifications, such as working situation, dust or fume characteristics, air volume(CFM), filter area(M2), inlet temperature(℃), wind speed(M/min) etc. We will send the quotation within 24 hours.
Q: How to pay for the product?
A: T/T, L/C, Western Union, Paypal are available.
Q: How long is the delivery time?
A: About 5-40 days upon the payment.
Q: How about the after-sale installation of dust collector?
A: 1.We provide installation manual, technical consulting forever. Our engineers are available to help you install dust collector onsite.
     2.We also can provide installing turn-key projects overseas.
